Automatic Signature Extraction
First Published: July 19, 2007The Automatic Signature Extraction (ASE) feature helps shorten the response time for identifying malware by dynamically extracting signatures of unknown viruses and worms traversing the network without the need for human intervention.
Before Cisco IOS Release 12.4(15)T, network protection from malware such as botnets, viruses, and worms was accomplished by deploying solutions that rely on manual signatures to identify the malware. Normally, security professionals require approximately 8 to 12 hours to generate a signature for a new piece of malware. This time interval had been acceptable for thwarting malware, but is no longer acceptable nor scalable due to the exponential increase in malware that is seen on networks.
Finding Feature Information in This Module
Your Cisco IOS software release may not support all of the features documented in this module. To reach links to specific feature documentation in this module and to see a list of the releases in which each feature is supported, use the "Feature Information for Automatic Signature Extraction" section.
Finding Support Information for Platforms and Cisco IOS and Catalyst OS Software Images
Use Cisco Feature Navigator to find information about platform support and Cisco IOS and Catalyst OS software image support. To access Cisco Feature Navigator, go to http://www.cisco.com/go/cfn. An account on Cisco.com is not required.
Contents
•
Prerequisites for Automatic Signature Extraction
•
•
•
•
Prerequisites for Automatic Signature Extraction
The following prerequisites apply for the ASE collector.
See the "Automatic Signature Extraction Collector Operation" section for more information on the ASE collector.
•
•
Note
Restrictions for Automatic Signature Extraction
Contact your Cisco representative for any restrictions concerning the ASE collector or ASE sensor implementation.
Information About Automatic Signature Extraction
The following sections describe how the ASE feature works and how ASE is implemented on a WAN:
•
•
•
•
Automatic Signature Extraction Overview
The Automatic Signature Extraction feature is used to identify and define potential worms and viruses found in network traffic based on the following characteristics:
•
•
•
Note
When the ASE sensor extracts a malware signature, the ASE sensor sends the signature to the collector using the TIDP Threat Mitigation Service (TMS) to contain and mitigate the malware outbreak among TMS consumers spread across the network. The TMS framework rapidly and efficiently distributes threat information to devices on the network and generates actions to TMS consumers to either drop or redirect the packets containing the malware signature.
Note
See TIDP Based Mitigation Services for more information on TMS operation.
Automatic Signature Extraction Sensor Operation
The ASE feature has two main components: a sensor and collector. The ASE sensor sifts through the contents of network traffic to reduce the number of different source and destination addresses seen in packets. To minimize the impact on the device, sensing can be enabled or disabled on a per-interface basis and traffic designated as ASE traffic can be specified. The ASE sensor observes the same traffic as the router can observe after an access list is applied.
Note

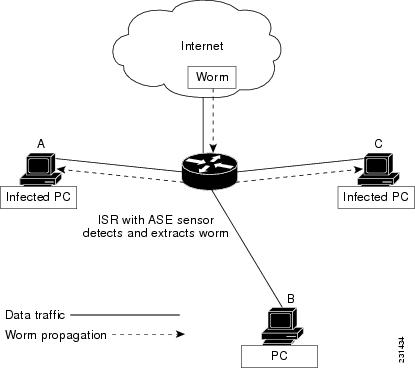

Figure 1, Cisco IOS Signature Extraction, shows that devices A and C are infected with the same worm. As traffic crosses the Cisco IOS router running the ASE sensor, the router extracts the worm's signature based on its address dispersion and content prevalence. Then the router sends this information to the ASE collector for further processing.
Figure 1 Cisco IOS Signature Extraction
Automatic Signature Extraction Collector Operation
The ASE collector, which runs on a Linux-based PC, performs the following functions:
•
•
•
•
•
•
•
•
•
•
•
Note
Automatic Signature Extraction Implementation on a Network
Self-propagating worms continue to grow and affect the security of hosts and networks. These malicious malware attacks often target specific victims or subnets within an enterprise organization. Specifically, a worm can affect and saturate the local network (including all hosts), the branch router, and the local WAN connection or both. The optimal location to detect, contain, and mitigate these worms is on the gateway network connection to prevent the worms from spreading to the entire network, including all connected branches.
Using the WAN Aggregation Model to Contain Malware
The ASE sensor is typically deployed on the Customer Premises Equipment (CPE) WAN so that worms closest to the source can be extracted and prevented from spreading to other areas of the enterprise network.
The WAN aggregation model refers to the traditional deployment scenario in which CPEs are terminated over WAN links to an aggregation HUB. In this model, the CPEs would serve as ASE sensors, and the aggregation HUB would provide ASE Collector functionality. Figure 2, WAN Aggregation Model, shows how worm signatures are extracted at the CPEs and the HUB site with the ASE sensor and shows how the ASE sensor uses this signature information with the ASE collector to contain the outbreak.

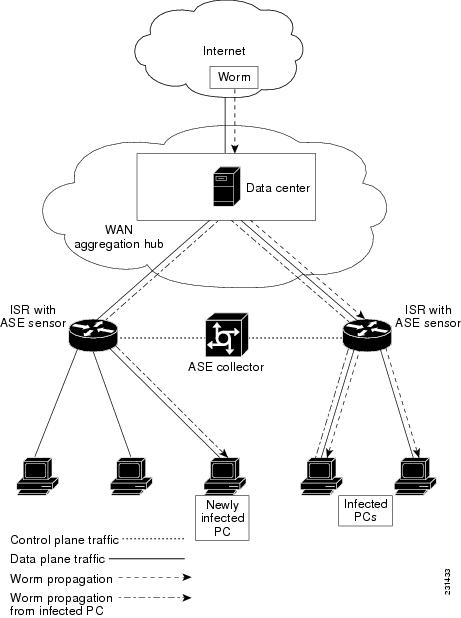

Figure 2 WAN Aggregation Model
How to Configure Automatic Signature Extraction
This section contains the following task:
•
Configuring Automatic Signature Extraction
This section describes how to configure the Automatic Signature Extraction sensor feature on an ISR router.
SUMMARY STEPS
1.
2.
3.
4.
5.
6.
7.
8.
9.
DETAILED STEPS
Step 1
enable
Example:Router> enable
Enables privileged EXEC mode.
•
Step 2
configure terminal
Example:Router# configure terminal
Enters global configuration mode.
Step 3
ase group TIDP-group-number
Example:Router(config)# ase group 10
The group number range is between 1 and 65535, which identifies the TIDP group number used for exchange between the ASE sensor and ASE collector.
Note
Step 4
ase collector ip-address
Example:Router(config)# ase collector 10.10.10.3
Enters the destination IP address of the ASE collector server so that the ASE sensor has IP connectivity to the ASE collector.
Step 5
ase signature extraction
Example:Router(config)# ase signature extraction
Enables the ASE feature globally on the router.
Step 6
interface interface-type number
Example:Router(config)# interface GigabitEthernet0/1
Enters the interface for the ASE feature, and enters interface configuration mode.
Step 7
ase enable
Example:Router(config-if)# ase enable
Enables the ASE feature on this interface.
Step 8
end
Example:Router(config-if)# end
Returns to privileged EXEC mode.
Step 9
show ase
Example:Router# show ase
Displays the ASE run-time status.
The four states are:
•
•
•
•
What to Do Next
Start the ASE collector. The ASE collector, which runs on a Linux-based PC, provides the ASE sensor software on the Cisco IOS with entries and analysis on extracted signatures.
Note
After the ASE collector is started, the ASE run-time status information can be displayed by using the show ase command, as shown below:
Note
Router# show aseASE Information:Collector IP: 10.10.10.3TIDP Group : 10Status : OnlinePackets inspected: 1105071Address Dispersion Threshold: 20Prevalence Threshold: 10Sampling set to: 1 in 64Address Dispersion Inactivity Timer: 3600sPrevalence Table Refresh Time: 60sAdditional References
The following sections provide references related to Automatic Signature Extraction.
Related Documents
Threat Information Distribution Protocol (TIDP) Mitigation Service (TMS)
Security related information
Cisco IOS Security Configuration Guide, Release 12.4
Standards
No new or modified standards are supported by this feature, and support for existing standards has not been modified by this feature.
—
MIBs
RFCs
Technical Assistance
Command Reference
This section documents only commands that are new or modified.
ase collector
To enter the destination IP address of the Automatic Signature Extraction (ASE) collector server, use the ase collector command in global configuration mode. To remove this IP address, use the no form of this command.
ase collector ip-address
no ase collector ip-address
Syntax Description
Command Default
No ASE collector IP address is specified.
Command Modes
Global configuration (config)
Command History
Usage Guidelines
This command is used on the Cisco 1800, 2800, and 7200 series routers, Cisco 7301 router, and Integrated Services Routers (ISRs) as ASE sensors.
Examples
The following example shows how to configure an ASE collector IP address:
Router(config)# ase collector 10.10.10.3Related Commands
ase enable
To enable the Automatic Signature Extraction (ASE) feature on a specified interface, use the ase enable command in interface configuration mode. To disable the ASE feature on a specified interface, use the no form of this command.
ase enable
no ase enable
Syntax Description
This command has no arguments or keywords.
Command Default
The ASE feature is disabled on an interface.
Command Modes
Interface configuration (config-if)
Command History
Usage Guidelines
This command is used on the Cisco 1800, 2800, and 7200 series routers, Cisco 7301 router, and Integrated Services Routers (ISRs) as ASE sensors.
Examples
The following example shows how to enable the ASE feature on a specified interface:
Router(config-if)# ase enableRelated Commands
ase group
To identify the Threat Information Distribution Protocol (TIDP) group number used for exchange between the Automatic Signature Extraction (ASE) sensor and ASE collector, use the ase group command in global configuration mode. To disable this group number, use the no form of this command.
ase group TIDP-group-number
no ase group TIDP-group-number
Syntax Description
TIDP-group-number
TIDP group number for the ASE feature. The range of group numbers is between 1 and 65535.
Command Default
No TIDP group number is specified.
Command Modes
Global configuration (config)
Command History
Usage Guidelines
This command is used on the Cisco 1800, 2800, and 7200 series routers, Cisco 7301 router, and Integrated Services Routers (ISRs) as ASE sensors.
Examples
The following example shows how to configure a TIDP group number for the ASE feature:
Router(config)# ase group 10Related Commands
ase signature extraction
To enable the Automatic Signature Extraction (ASE) feature globally on the router, use the ase signature extraction command in global configuration mode. To disable the ASE feature globally on the router, use the no form of this command.
ase signature extraction
no ase signature extraction
Syntax Description
This command has no arguments or keywords.
Command Default
The ASE feature is disabled.
Command Modes
Global configuration (config)
Command History
Usage Guidelines
This command is used on the Cisco 1800, 2800, and 7200 series routers, Cisco 7301 router, and Integrated Services Routers (ISRs) as ASE sensors.
Examples
The following example shows how to enable the ASE feature globally on the router:
Router(config)# ase signature extractionRelated Commands
clear ase signatures
To remove all Automatic Extraction Signatures (ASEs), use the clear ase signatures command in privileged EXEC configuration mode.
clear ase signatures
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC (#)
Command History
Usage Guidelines
This command is used to remove all the generated signatures that are displayed in the show ase signatures command output.
This command is used on the Cisco 1800, 2800, and 7200 series routers, Cisco 7301 router, and Integrated Services Routers (ISRs) as ASE sensors.
Examples
The following example output demonstrates the result of removing generated signatures:
Router# show ase signaturesAutomatic Signature Extraction Detected Signatures==================================================Signature Hash: 0x1E4A2076AAEA19B1, Offset: 54, Dest Port: TCP 135,Signature: 05 00 00 03 10 00 00 00 F0 00 10 00 01 00 00 00 B8 00 00 00 00 00 03 00 01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00Signature Hash: 0x24EC60FB1CF9A800, Offset: 72, Dest Port: TCP 445,Signature: 00 00 00 00 00 00 00 00 00 00 00 00 FF FE 00 00 00 00 00 62 00 02 50 43 20 4E 45 54 57 4F 52 4B 20 50 52 4F 47 52 41 4DSignature Hash: 0x0B0275535FFF480C, Offset: 54, Dest Port: TCP 445,Signature: 00 00 00 85 FF 53 4D 42 72 00 00 00 00 18 53 C8 00 00 00 00 00 00 00 00 00 00 00 00 00 00 FF FE 00 00 00 00 00 62 00 02Router# clear ase signaturesRouter# show ase signaturesAutomatic Signature Extraction Detected Signatures==================================================Table 1 describes the significant fields shown in the display.
Related Commands
debug ase
To gather Automatic Signature Extraction (ASE) error, log, messaging, reporting, status, and timer information, use the debug ase command in privileged EXEC mode. To disable error, log, messaging, reporting, status, and timer information, use the no form of this command.
debug ase {errors | log | messages | reports | status | timing}
no debug ase {errors | log | messages | reports | status | timing}
Syntax Description
Command Default
Disabled
Command Modes
Privileged EXEC (#)
Command History
Usage Guidelines
This command is used on the Cisco 1800, 2800, and 7200 series routers, Cisco 7301 router, and Integrated Services Routers (ISRs) as ASE sensors.
Related Commands
show ase
To display the Automatic Signature Extraction (ASE) run-time status or detected signatures, use the show ase command in privileged EXEC mode.
show ase [signature |]
Syntax Description
signature
(Optional) Displays the detected ASE signatures.
|
(Optional) Use output modifiers to display specific information.
Command Modes
Privileged EXEC (#)
Command History
Usage Guidelines
If you specify the show ase command with no keywords, then only the run-time status is shown. If the show ase signature command is specified, then only detected ASE signatures are displayed.
This command is used on the Cisco 1800, 2800, and 7200 series routers, Cisco 7301 router, and Integrated Services Routers (ISRs) as ASE sensors.
Examples
The following example output displays the ASE run-time status.
Note
Router# show aseASE Information:Collector IP: 10.10.10.3TIDP Group : 10Status : OnlinePackets inspected: 1105071Address Dispersion Threshold: 20Prevalence Threshold: 10Sampling set to: 1 in 64Address Dispersion Inactivity Timer: 3600sPrevalence Table Refresh Time: 60sTable 1 describes the significant fields shown in the display.
The following example output displays the detected ASE signatures:
Router# show ase signatureAutomatic Signature Extraction Detected Signatures==================================================Signature Hash: 0x1E4A2076AAEA19B1, Offset: 54, Dest Port: TCP 135,Signature: 05 00 00 03 10 00 00 00 F0 00 10 00 01 00 00 00 B8 00 00 00 00 00 03 00 01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00Signature Hash: 0x24EC60FB1CF9A800, Offset: 72, Dest Port: TCP 445,Signature: 00 00 00 00 00 00 00 00 00 00 00 00 FF FE 00 00 00 00 00 62 00 02 50 43 20 4E 45 54 57 4F 52 4B 20 50 52 4F 47 52 41 4DSignature Hash: 0x0B0275535FFF480C, Offset: 54, Dest Port: TCP 445,Signature: 00 00 00 85 FF 53 4D 42 72 00 00 00 00 18 53 C8 00 00 00 00 00 00 00 00 00 00 00 00 00 00 FF FE 00 00 00 00 00 62 00 02Related Commands
Feature Information for Automatic Signature Extraction
Table 3 lists the release history for this feature.
Not all commands may be available in your Cisco IOS software release. For release information about a specific command, see the command reference documentation.
Use Cisco Feature Navigator to find information about platform support and software image support. Cisco Feature Navigator enables you to determine which Cisco IOS and Catalyst OS software images support a specific software release, feature set, or platform. To access Cisco Feature Navigator, go to http://www.cisco.com/go/cfn. An account on Cisco.com is not required.
Note
Glossary
botnet—Slang term for a collection of software robots, or bots, which run autonomously or to a network of compromised "zombie" computers running distributed programs, which are usually referred to as worms, Trojan horses, or backdoors, under a common command and control infrastructure.
CPE—Customer Premises Equipment. Terminating equipment, such as a router installed at a customer site, and connected to a WAN.
ISR—Integrated Services Router. Router that supports integrated or multimedia services, including traffic management mechanisms.
malware—Detrimental software designed to infiltrate or damage a computer system without the owner's informed consent. Examples of malware include viruses, worms, botnets, spam, adware, etc.
signature—The 40 bytes of packet data that can be used to identify a piece of malware.
TIDP—Threat Information Distribution Protocol. Communication protocol used between the Linux-based Automatic Signature Extraction collector and Cisco IOS-based ASE sensors.
TMS—Threat Mitigation Service. TMS is used with the TIDP protocol to contain and mitigate the malware outbreak among TMS consumers on a network.
Virus—Hidden, self-replicating section of computer software, usually malicious logic, that propagates by infecting—that is, inserting a copy of itself into and becoming part of—another program. A virus cannot run by itself; it requires that its host program be run to make the virus active.
WAN—wide-area network. Data communications network that serves users across a broad geographic area and often uses transmission devices provided by common carriers. Frame Relay, SMDS, and X.25 are examples of WANs.
worm—Computer program that can run independently, can propagate a complete working version of itself onto other hosts on a network, and can consume computer resources destructively.
