Router IP Traffic Export Packet Capture Enhancements

---

First Published: November 17, 2006

Last Updated: November 17, 2006

IP Traffic Export allows you to configure your router to export IP packets received on multiple, simultaneous WAN or LAN interfaces. The unaltered IP packets are exported on a single LAN or VLAN interface, thereby, easing deployment of protocol analyzers and monitoring devices.

The Router IP Traffic Export Packet Capture Enhancements feature allows you to configure your router to capture IP packets in a buffer within the router, and then to dump these packets into a specified memory device.

Finding Feature Information in This Module

Your Cisco IOS software release may not support all of the features documented in this module. To reach links to specific feature documentation in this module and to see a list of the releases in which each feature is supported, use the "Feature Information for IP Traffic Export" section.

Finding Support Information for Platforms and Cisco IOS and Catalyst OS Software Images

Use Cisco Feature Navigator to find information about platform support and Cisco IOS and Catalyst OS software image support. To access Cisco Feature Navigator, go to http://www.cisco.com/go/cfn. An account on Cisco.com is not required.

Contents

•Restrictions for IP Traffic Export

•Information About IP Traffic Export

•How to Use IP Traffic Export

•Configuration Examples for IP Traffic Export

•Additional References

•Command Reference

•Feature Information for IP Traffic Export

Restrictions for IP Traffic Export

Platform Restrictions

IP traffic export is intended only for software switching platforms; distributed architectures are not supported.

IP traffic capture is supported only on the Cisco 1841, Cisco 2800 series, and Cisco 3800 series integrated services routers.

IP Packet Forwarding Performance Impact

When IP traffic export is enabled, a delay is incurred on the outbound interface when packets are captured and transmitted across the interface. Performance delays increase with the increased number of interfaces that are monitored and the increased number of destination hosts.

Exported Traffic Limitation

•The MAC address of the device that is receiving the exported traffic must be on the same VLAN or directly connected to one of the router interfaces. (Use the show arp command to determine the MAC address of device that is directly connected to an interface.)

•The outgoing interface for exported traffic must be Ethernet (10/100/1000). (Incoming (monitored) traffic can traverse any interface.)

Information About IP Traffic Export

To use the IP traffic export, you should understand the following concept:

•Benefits of IP Traffic Export

Benefits of IP Traffic Export

Simplified Cisco IDS Deployment

Without the ability to export IP traffic, the Cisco Intrusion Detection System (Cisco IDS) probe must be inline with the network device to monitor traffic flow. IP traffic export eliminates the probe placement limitation, allowing users to place a Cisco IDS probe in any location within their network or direct all exported traffic to a VLAN that is dedicated for network monitoring. Allowing users to choose the optimal location of their Cisco IDS probe reduces processing burdens.

Also, because packet processing that was performed on the network device can now be performed away from the network device, the need to enable Cisco IDS with the Cisco IOS software is eliminated.

IP Traffic Export Functionality Benefits

Users can configure their router to perform the following tasks:

•Filter copied packets using an access control list (ACL)

•Filter copied packets via sampling, which allows you to export one in every few packets in which you are interested. Use this option when you do not need to export all incoming traffic. Also, sampling is useful when a monitored ingress interface can send traffic faster than the egress interface can transmit it.

•Configure bidirectional traffic on an interface. (By default, only incoming traffic is exported or captured.)

How to Use IP Traffic Export

This section contains the following procedures:

•Configuring IP Traffic Export (required)

•Configuring IP Traffic Capture (required)

•Displaying IP Traffic Export Configuration Data (required)

Configuring IP Traffic Export

Use this task to configure IP traffic export profiles, which enable IP traffic to be exported on an ingress interface and allow you to specify profile attributes, such as the outgoing interface for exporting traffic.

---

Note Perform packet exporting before packet switching or filtering.

---

IP Traffic Export Profiles Overview

All packet export configurations are specified using IP traffic export profiles, which consist of IP-traffic-export-related command-line interfaces (CLIs) that control various attributes for both incoming and outgoing exported IP traffic. You can configure a router with multiple IP traffic export profiles. (Each profile must have a different name.) You can apply different profiles on different interfaces.

The two different IP traffic export profiles are as follows:

•The global configuration profile, which is configured by the ip traffic-export profile command.

•The IP traffic export submode configuration profile, which is configured by any of the following router IP Traffic Export (RITE) commands—bidirectional, incoming, interface, mac-address, and outgoing.

SUMMARY STEPS

1. enable

2. configure terminal

3. ip traffic-export profile profile-name

4. interface interface-name

5. bidirectional

6. mac-address H.H.H

7. incoming {access-list {standard | extended | named} | sample one-in-every packet-number}

8. outgoing {access-list {standard | extended | named} | sample one-in-every packet-number}

9. exit

10. interface type number

11. ip traffic-export apply profile-name

DETAILED STEPS

	Command or Action	Purpose
Step 1	enable Example: Router> enable	Enables privileged EXEC mode. •Enter your password if prompted.
Step 2	configure terminal Example: Router# configure terminal	Enters global configuration mode.
Step 3	ip traffic-export profile profile-name Example: Router(config)# ip traffic-export profile my_rite	Creates or edits an IP traffic export profile, enables the profile on an ingress interface, and enters RITE configuration mode.
Step 4	interface interface-name Example: Router(config-rite)# interface FastEthernet 0/1	Specifies the outgoing (monitored) interface for exported traffic. Note If you do not enter this command, the profile will not recognize an interface in which to send the captured IP traffic.
Step 5	bidirectional Example: Router(config-rite)# bidirectional	(Optional) Exports incoming and outgoing IP traffic on the monitored interface. Note If you do not enable this command, only incoming traffic is exported.
Step 6	mac-address H.H.H Example: Router(config-rite)# mac-address 00a.8aab.90a0	Specifies the 48-bit address of the destination host that is receiving the exported traffic. Note If you do not enter this command, the profile will not recognize a destination host in which to send the exported packets.
Step 7	incoming {access-list {standard | extended | named} | sample one-in-every packet-number} Example: Router(config-rite)# incoming access-list my_acl	(Optional) Configures filtering for incoming traffic. After you create a profile using the ip traffic-export profile, this functionality is enabled by default.
Step 8	outgoing {access-list {standard | extended | named} | sample one-in-every packet-number} Example: Router(config-rite)# outgoing sample one-in-every 50	(Optional) Configures filtering for outgoing export traffic. Note If you enter this command, you must also enter the bidirectional command, which enables outgoing traffic to be exported. However, only routed traffic (such as passthrough traffic) is exported; that is, traffic that originates from the network device is not exported.
Step 9	exit	Exits RITE configuration mode.
Step 10	interface type number Example: Router(config)# interface FastEthernet0/0	Configures an interface type and enters interface configuration mode.
Step 11	ip traffic-export apply profile-name Example: Router(config-if)# ip traffic-export apply my_rite	Enables IP traffic export on an ingress interface.

Troubleshooting Tips

Creating an IP Traffic Export Profile

The interface and mac-address commands are required to successfully create a profile. If these commands are not entered, you will receive the following profile incomplete message when you enter the show running config command:

ip traffic-export profile newone

! No outgoing interface configured

! No destination mac-address configured

Applying an IP Traffic Export Profile to an interface

The following system logging messages should appear immediately after you activate and deactivate a profile from an interface (via the ip traffic-export apply profile command):

•Activated profile:

%RITE-5-ACTIVATE: Activated IP traffic export on interface FastEthernet 0/0.

•Deactivated profile:

%RITE-5-DEACTIVATE: Deactivated IP traffic export on interface FastEthernet 0/0.

If you attempt to apply an incomplete profile to an interface, you will receive the following message:

Router(config-if)# ip traffic-export apply newone

RITE: profile newone has missing outgoing interface

What to Do Next

After you configure a profile and enable the profile on an ingress interface, you can monitor IP traffic exporting events and verify your profile configurations. To complete these steps, see the "Displaying IP Traffic Export Configuration Data" section.

Configuring IP Traffic Capture

IP traffic export provides the capability to export IPO traffic over an Ethernet port. IP traffic capture provides the capability to capture IP packets in local router memory, and then dump this data to a file on an external device, such as flash memory.

IP traffic capture is supported on the Cisco 1841, Cisco 2800 series, and Cisco 3800 series integrated services routers.

The following sections describe the configuration and control of IP traffic capture:

•Configuring IP Traffic Capture (required)

•Performing IP Traffic Capture (required)

Configuring IP Traffic Capture

Perform the following steps to configure IP traffic capture.

SUMMARY STEPS

1. enable

2. configure terminal

3. ip traffic-export profile profile-name mode capture

4. bidirectional

5. incoming {access-list {standard | extended | named} | sample one-in-every packet-number}

6. outgoing {access-list {standard | extended | named} | sample one-in-every packet-number}

7. length bytes

8. exit

9. interface type number

10. ip traffic-export apply profile-name size size

DETAILED STEPS

	Command or Action	Purpose
Step 1	enable Example: Router> enable	Enables privileged EXEC mode. •Enter your password if prompted.
Step 2	configure terminal Example: Router# configure terminal	Enters global configuration mode.
Step 3	ip traffic-export profile profile-name mode capture Example: Router(config)# ip traffic-export profile my_rite	Creates or edits an IP traffic export profile for capture and enters RITE configuration mode.
Step 4	bidirectional Example: Router(config-rite)# bidirectional	(Optional) Captures incoming and outgoing IP traffic on the monitored interface. Note If you do not enable this command, only incoming traffic is captured.
Step 5	incoming {access-list {standard | extended | named} | sample one-in-every packet-number} Example: Router(config-rite)# incoming access-list my_acl	(Optional) Configures filtering for incoming traffic. After you have created a capture profile using ip traffic-export profile name mode capture, this functionality is enabled by default.
Step 6	outgoing {access-list {standard | extended | named} | sample one-in-every packet-number} Example: Router(config-rite)# outgoing sample one-in-every 50	(Optional) Configures filtering for outgoing captured traffic. Note If you enter this command, you must also enter the bidirectional command, which enables outgoing traffic to be captured. However, only routed traffic (such as passthrough traffic) is captured; that is, traffic that originates from the network device is not captured.
Step 7	length bytes Example: Router(config-rite)# length 512	Specifies the length of the packet in capture mode. The options are 128, 256, and 512 bytes.
Step 8	exit Example: Router(config-rite)# exit	Exits RITE configuration mode.
Step 9	interface type number Example: Router(config)# interface FastEthernet0/0	Configures an interface type and enters interface configuration mode.
Step 10	ip traffic-export apply profile-name size size Example: Router(config-if)# ip traffic-export apply my_rite size 10000000	Applies IP traffic capture on an ingress interface, and specifies the size of the capture buffer.

Performing IP Traffic Capture

When traffic capture is configured, perform it using with CLI commands. There are commands to clear the capture buffer, to start and stop packet capture, and to copy the capture buffer to an external memory device. These commands are:

•traffic-export interface type number clear

•traffic-export interface type number start

•traffic-export interface type number stop

•traffic-export interface type number copy

Use these commands in privileged EXEC mode at your discretion to perform the following operations:

•Clear the IP Traffic Capture Buffer

•Start IP Traffic Capture

•Stop IP Traffic Capture

•Copy IP Traffic Capture

Clear the IP Traffic Capture Buffer

To clear the packet capture buffer for the designated interface, use the traffic-export interface clear command.

Command or Action	Purpose
traffic-export interface type number clear Example: Router# traffic-export interface fastethernet0/0 clear	Clears the packet capture buffer. Note The following system logging message should appear immediately after you enter the command: %RITE-5-CAPTURE_CLEAR: Cleared IP traffic capture buffer for interface FastEthernet0/0

Start IP Traffic Capture

To initiate packet capture, use the traffic-export interface start command. This action will copy those packets designated in the traffic capture configuration into the internal capture buffer for the interface.

Command or Action	Purpose
traffic-export interface type number start Example: Router# traffic-export interface fastethernet0/0 start	Starts packet capture on the designated interface. Note The following system logging message should appear immediately after you enter the command: %RITE-5-CAPTURE_START: Started IP traffic capture for interface FastEthernet0/0

Stop IP Traffic Capture

To halt packet capture, use the traffic-export interface stop command.

Command or Action	Purpose
traffic-export interface type number stop Example: Router# traffic-export interface fastethernet0/0 stop	Stops packet capture on the designated interface. Note The following system logging message should appear immediately after you enter the command: %RITE-5-CAPTURE_STOP: Stopped IP traffic capture for interface FastEthernet0/0

Copy IP Traffic Capture

To copy the packet capture buffer to an external memory device, use the traffic-export interface copy command.

Command or Action	Purpose
traffic-export interface type number copy memory-device Example: Router# traffic-export interface fastethernet0/0 copy tftp:	Copies the contents of the packet capture buffer to the selected memory device. Memory device options are: •flash: •tftp: •usbflash0:

After you enter this command, an interactive dialog occurs.

Enter the name or address of the remote host containing the external memory device.

Address or name of remote host []? [name | address]

Enter the name of the capture buffer file in the remote host.

Capture buffer filename []? filename

An example of this dialog is:

Router# traffic-export interface fastethernet0/0 copy tftp:

Address or name of remote host []? 172.18.207.15

Capture buffer filename []? atmcapture

Copying capture buffer to tftp://172.18.207.15/atmcapture !!

Displaying IP Traffic Export Configuration Data

This task allows you to verify IP traffic export parameters such as the monitored ingress interface, which is where the IP traffic is exported, and outgoing and incoming IP packet information, such as configured ACLs. You can also use this task to monitor packets that are captured and then transmitted across an interface to a destination host. Use this optional task to help you troubleshoot any problems with your exported IP traffic configurations.

SUMMARY STEPS

1. enable

2. debug ip traffic-export events

3. show ip traffic-export [interface interface-name | profile profile-name]

DETAILED STEPS

	Command or Action	Purpose
Step 1	enable Example: Router> enable	Enables privileged EXEC mode. •Enter your password if prompted.
Step 2	debug ip traffic-export events Example: Router# debug ip traffic-export events	Enables debugging messages for exported IP traffic packets events.
Step 3	show ip traffic-export [interface interface-name | profile profile-name] Example: Router# show ip traffic-export	Displays information related to exported IP traffic events. •interface interface-name—Only data associated with the monitored ingress interface is shown. •profile profile-name—Only flow statistics, such as exported packets and the number of bytes, are shown.

Examples

The following sample output from the show ip traffic-export command is for the profile "one." This example is for a single, configured interface. If multiple interfaces are configured, the information below is displayed for each interface.

Router# show ip traffic-export

Router IP Traffic Export Parameters

Monitored Interface FastEthernet0/0

Export Interface FastEthernet0/1

Destination MAC address 0030.7131.abfc

bi-directional traffic export is off

Input IP Traffic Export Information Packets/Bytes Exported 0/0

Packets Dropped 0

Sampling Rate one-in-every 1 packets

        No Access List configured

        Profile one is Active

Configuration Examples for IP Traffic Export

This section includes the following configuration examples:

•Exporting IP Traffic Configuration: Example

•Capturing IP Traffic Configuration: Example

Exporting IP Traffic Configuration: Example

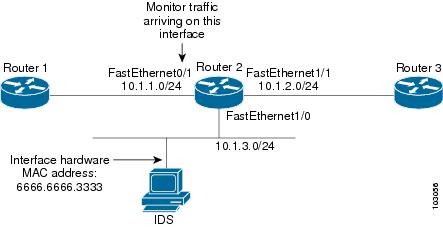

Figure 1 and the following sample output from the show running-config command illustrate how to configure Router 2 to export the incoming traffic from Router 1 to Cisco IDS:

Figure 1 Traffic Export Example

Router2# show running-config

Building configuration...

Current configuration :2349 bytes

! Last configuration change at 20:35:39 UTC Wed Oct 8 2003

! NVRAM config last updated at 20:35:39 UTC Wed Oct 8 2003

!

version 12.3

service timestamps debug uptime

service timestamps log uptime

no service password-encryption

service internal

service udp-small-servers

!

hostname rite-3745

!

boot system flash:c3745-js-mz.123-1.8.PI2d

no logging console

enable password lab

!

no aaa new-model

ip subnet-zero

!

no ip domain lookup

!

ip cef

!

ip traffic-export profile my_rite

  interface FastEthernet1/0

  mac-address 6666.6666.3333

!

interface FastEthernet0/0

 ip address 10.0.0.94 255.255.255.0

 duplex auto

 speed auto

!

interface FastEthernet0/1

 ip address 10.1.1.2 255.255.255.0

 duplex auto

 speed auto

 ip traffic-export apply my_rite

!

interface FastEthernet1/0

 ip address 10.1.3.2 255.255.255.0

 no ip redirects

 no cdp enable

!

interface FastEthernet1/1

 ip address 10.1.2.2 255.255.255.0

 duplex auto

 speed auto

!

router ospf 100

 log-adjacency-changes

 network 10.1.0.0 0.0.255.255 area 0

!

ip http server

ip classless

!

snmp-server engineID local 0000000902000004C1C59140

snmp-server community public RO

snmp-server enable traps tty

!

control-plane

!

dial-peer cor custom

!

gateway

!

line con 0

 exec-timeout 0 0

 stopbits 1

line aux 0

line vty 0 4

 password lab

 login

!

ntp clock-period 17175608

ntp server 10.0.0.2

!

end

Capturing IP Traffic Configuration: Example

The following sample output from the show running-config command also refers to Figure 1. It illustrates how to configure Router 2 to locally capture the incoming traffic from Router 1, rather than export it.

Router2# show running-config

Building configuration...

Current configuration :2349 bytes

! Last configuration change at 20:35:39 UTC Wed Oct 8 2003

! NVRAM config last updated at 20:35:39 UTC Wed Oct 8 2003

!

version 12.3

service timestamps debug uptime

service timestamps log uptime

no service password-encryption

service internal

service udp-small-servers

!

hostname rite-3745

!

boot system flash:c3745-js-mz.123-1.8.PI2d

no logging console

enable password lab

!

no aaa new-model

ip subnet-zero

!

no ip domain lookup

!

ip cef

!

ip traffic-export profile my_rite mode capture

 length 512

!

interface FastEthernet0/0

 ip address 10.0.0.94 255.255.255.0

 duplex auto

 speed auto

!

interface FastEthernet0/1

 ip address 10.1.1.2 255.255.255.0

 duplex auto

 speed auto

 ip traffic-export apply my_rite size 10000000

!

interface FastEthernet1/0

 ip address 10.1.3.2 255.255.255.0

 no ip redirects

 no cdp enable

!

interface FastEthernet1/1

 ip address 10.1.2.2 255.255.255.0

 duplex auto

 speed auto

!

router ospf 100

 log-adjacency-changes

 network 10.1.0.0 0.0.255.255 area 0

!

ip http server

ip classless

!

snmp-server engineID local 0000000902000004C1C59140

snmp-server community public RO

snmp-server enable traps tty

!

control-plane

!

dial-peer cor custom

!

gateway

!

line con 0

 exec-timeout 0 0

 stopbits 1

line aux 0

line vty 0 4

 password lab

 login

!

ntp clock-period 17175608

ntp server 10.0.0.2

!

end

Additional References

The following sections provide references related to IP Traffic Export.

Related Documents

Related Topic	Document Title
Configuring Cisco IDS	The chapter "Configuring Cisco IOS Firewall Intrusion Detection System" in the section "Traffic Filtering and Firewalls" of the Cisco IOS Security Configuration Guide.
Configuring IP	The chapter "Configuring IP Services" in the section "IP Addressing and Services" of the Cisco IOS IP Configuration Guide

Standards

Standards	Title
No new or modified standards are supported by this feature, and support for existing standards has not been modified by this feature.	—

MIBs

MIBs	MIBs Link
No new or modified MIBs are supported by this feature, and support for existing MIBs has not been modified by this feature.	To locate and download MIBs for selected platforms, Cisco IOS releases, and feature sets, use Cisco MIB Locator found at the following URL: http://www.cisco.com/go/mibs

RFCs

RFCs	Title
No new or modified RFCs are supported by this feature, and support for existing RFCs has not been modified by this feature.	—

Technical Assistance

Description	Link
The Cisco Technical Support & Documentation website contains thousands of pages of searchable technical content, including links to products, technologies, solutions, technical tips, and tools. Registered Cisco.com users can log in from this page to access even more content.	http://www.cisco.com/techsupport

Command Reference

This section documents new and modified commands only.

•ip traffic-export apply

•ip traffic-export profile

•length (RITE)

•traffic-export

ip traffic-export apply

To apply an IP traffic export profile or an IP traffic capture profile to a specific interface, use the ip traffic-export apply profile command in interface configuration mode. To remove an IP traffic export profile or an IP traffic capture profile from an interface, use the no form of this command.

ip traffic-export apply profile-name

no ip traffic-export apply profile-name

Cisco 1841, Cisco 2800 Series, and Cisco 3800 Series

ip traffic-export apply profile-name size size

no ip traffic-export apply profile-name

Syntax Description

profile-name	Name of the profile that is to be applied to a specified interface. The profile-name argument must match a name that was specified in the ip traffic-export profile command.
size	Optional. Used in IP traffic capture mode to set up a local capture buffer.
size	Optional. Specifies the size of the local capture buffer, in bytes.

Defaults

If you do not use this command, a sucessfully configured profile is not active.

Command Modes

Interface configuration

Command History

Release	Modification
12.3(4)T	This command was introduced.
12.2(25)S	This command was integrated into Cisco IOS Release 12.2(25)S.
12.4(11)T	This command was updated to incorporate the size keyword and size argument for IP traffic capture mode on the Cisco 1841, Cisco 2800 series, and Cisco 3800 series routers.

Usage Guidelines

After you configure at least one export profile, use the ip traffic-export apply profile command to activate IP traffic export on the specified ingress interface.

After you configure a capture profile, use the ip traffic-export apply profile command to activate IP traffic capture on the specified ingress interface, and to specify the size of the local capture buffer.

Examples

The following example shows how to apply the export profile "corp1" to interface Fast Ethernet 0/0.

Router(config)# ip traffic-export profile corp1

Router(config-rite)# interface FastEthernet 0/1

Router(config-rite)# bidirectional

Router(config-rite)# mac-address 00a.8aab.90a0

Router(config-rite)# outgoing sample one-in-every 50

Router(config-rite)# incoming access-list spam_acl

Router(config-rite)# exit

Router(config)# interface FastEthernet 0/0

Router(config-if)# ip traffic-export apply corp1

The following example shows how to apply the capture profile "corp2" to interface Fast Ethernet 0/0, and specify a capture buffer of 10,000,000 bytes.

Router(config)# ip traffic-export profile corp2 mode_capture

Router(config-rite)# bidirectional

Router(config-rite)# outgoing sample one-in-every 50

Router(config-rite)# incoming access-list ham_acl

Router(config-rite)# length 512

Router(config-rite)# exit

Router(config)# interface FastEthernet 0/0

Router(config-if)# ip traffic-export apply corp2 size 10000000

After a profile is activated on the interface, a logging message such as the following will appear:

%RITE-5-ACTIVATE: Activated IP traffic export on interface FastEthernet 0/0.

After a profile is removed from the interface, a logging message such as the following will appear:

%RITE-5-DEACTIVATE: Deactivated IP traffic export on interface FastEthernet 0/0.

If you attempt to apply an incomplete profile to an interface, you will receive the following message:

Router(config-if)# ip traffic-export apply newone

RITE: profile newone has missing outgoing interface

Related Commands

Command	Description
ip traffic-export profile	Creates or edits an IP traffic export profile and enables the profile on an ingress interface.
traffic-export	Controls the operation of IP traffic capture mode.

ip traffic-export profile

To create or edit an IP traffic export profile or an IP traffic capture profile and enable the profile on an ingress interface, use the ip traffic-export profile command in global configuration mode. To remove an IP traffic export profile from your router configuration, use the no form of this command.

ip traffic-export profile profile-name

no ip traffic-export profile profile-name

Cisco 1841, Cisco 2800 Series, and Cisco 3800 Series Routers

ip traffic-export profile profile-name mode_capture

no ip traffic-export profile profile-name

Syntax Description

profile-name	IP traffic export profile name.
mode_capture	Optional. Creates an IP traffic capture profile.

Defaults

A profile does not exist.

Command Modes

Global configuration

Command History

Release	Modification
12.3(4)T	This command was introduced.
12.2(25)S	This command was integrated into Cisco IOS Release 12.2(25)S.
12.4(11)T	This command was updated to incorporate the optional mode_capture keyword on the Cisco 1841, Cisco 2800 series, and Cisco 3800 series routers.

Usage Guidelines

The ip traffic-export profile command allows you to begin a profile that can be configured to capture or export IP packets as they arrive on or leave from a selected router ingress interface.

When exporting IP packets, a designated egress interface exports IP packets out of the router. So, the router can export unaltered IP packets to a directly connected device.

When capturing IP packets, the packets are stored in local router memory. They may then be dumped to an external device.

IP Traffic Export Profiles

All exported IP traffic configurations are specified by profiles, which consist of RITE-related command-line interface (CLI) commands that control various attributes of both incoming and outgoing IP traffic. You can configure a router with multiple profiles. (Each profile must have a different name.) You can apply different profiles on different interfaces.

The two profiles to configure are:

•Global configuration profile, which you configure using the ip traffic-export profile command.

•Submode configuration profile, which you configure using any of the following RITE commands—bidirectional, incoming, interface, mac-address, and outgoing.

Use interface and mac-address commands to successfully create a profile. If you do not issue these commands, the user will receive a profile incomplete messages such as the following:

ip traffic-export profile newone

! No outgoing interface configured

! No destination mac-address configured

After you configure your profiles, you can apply the profiles to an interface with the ip traffic-export apply profile command, which will activate it.

IP Traffic Capture Profiles

On the Cisco 1841, Cisco 2800 series, and Cisco 3800 series routers, you can also configure IP traffic capture. A captured IP traffic configuration is specified by a profile, which consists of RITE-related command-line interface (CLI) commands that control various attributes of both incoming and outgoing IP traffic.

The two profiles that you should configure are:

•Global configuration profile, which you configure using the ip traffic-export profile mode_capture command.

•Submode configuration profile, which you configure using any of the following RITE commands—bidirectional, incoming, length, and outgoing.

After you configure your profiles, you can apply the profiles to an interface with the ip traffic-export apply profile command, which will activate it.

When the IP traffic capture profile is applied to an interface, use the traffic-export command to control the capture of the traffic.

Examples

The following example shows how to configure the profile "corp1," which sends captured IP traffic to host "00a.8aab.90a0" at the interface "FastEthernet 0/1." This profile is also configured to export 1 in every 50 packets and to allow incoming traffic only from the access control list (ACL) "ham_ACL."

Router(config)# ip traffic-export profile corp1

Router(config-rite)# interface FastEthernet 0/1

Router(config-rite)# bidirectional

Router(config-rite)# mac-address 00a.8aab.90a0

Router(config-rite)# outgoing sample one-in-every 50

Router(config-rite)# incoming access-list ham_acl

Router(config-rite)# exit

Router(config)# interface FastEthernet 0/0

Router(config-if)# ip traffic-export apply corp1

The following example shows how to configure the profile "corp2," which captures IP traffic and stores it in a local router memory buffer of 10,000,000 bytes. This profile also captures 1 in every 50 packets and allows incoming traffic only from the access control list (ACL) "ham_ACL."

Router(config)# ip traffic-export profile corp2 mode_capture

Router(config-rite)# bidirectional

Router(config-rite)# outgoing sample one-in-every 50

Router(config-rite)# incoming access-list ham_acl

Router(config-rite)# length 512

Router(config-rite)# exit

Router(config)# interface FastEthernet 0/0

Router(config-if)# ip traffic-export apply corp2 size 10000000

Related Commands

Command	Description
bidirectional	Enables incoming and outgoing IP traffic to be exported or captured across a monitored interface.
incoming	Configures filtering for incoming export or capture traffic.
interface (RITE)	Specifies the outgoing interface for exporting traffic
ip traffic-export apply profile	Applies an IP traffic export or IP traffic capture profile to a specific interface.
length	Specifies the length of the packet in capture mode.
mac-address	Specifies the Ethernet address of the destination host in traffic export.
outgoing	Configures filtering for outgoing export or capture traffic.
traffic-export interface	Controls the operation of IP traffic capture mode.

length (RITE)

To specify the length the captured portion of the packets being captured in IP traffic export capture mode, use the length command in RITE configuration mode. To return to the default condition of capturing entire packets, use the no form of this command.

length bytes

no length

Syntax Description

bytes

The length in bytes of the packet captured in IP traffic export capture mode. Acceptable values are 128, 256, and 512.

Command Default

When you do not use this command, the entire packet is captured.

Command Modes

RITE configuration

Command History

Release	Modification
12.4(11)T	This command was introduced.

Usage Guidelines

Use this command to limit the length of the portion of the packets being captured in IP traffic export capture mode. The captured portion of the packets are limited to 128, 256, or 512 bytes. If you do not use the length command, entire packets are captured.

Examples

The following example shows the use of the length command in the configuration of IP traffic export capture mode profile "corp2":

Router(config)# ip traffic-export profile corp2 mode_capture

Router(config-rite)# bidirectional

Router(config-rite)# outgoing sample one-in-every 50

Router(config-rite)# incoming access-list ham_acl

Router(config-rite)# length 512

Router(config-rite)# exit

Router(config)# interface FastEthernet 0/0

Router(config-if)# ip traffic-export apply corp2 size 10000000

Related Commands

Command	Description
bidirectional	Enables incoming and outgoing IP traffic to be exported or captured across a monitored interface.
incoming	Configures filtering for incoming IP traffic export or IP traffic capture traffic.
ip traffic-export apply profile	Applies an IP traffic export or IP traffic capture profile to a specific interface.
ip traffic-export profile	Creates an IP traffic export or IP traffic capture profile on an ingress interface.
outgoing	Configures filtering for outgoing IP traffic export or IP traffic capture traffic.
traffic-export interface	Controls the operation of IP traffic capture mode.

traffic-export

To control the operation of IP traffic capture mode in IP traffic export, use the traffic-export command in privileged EXEC mode.

traffic-export interface type number { start | stop | clear | copy memory-device }

Syntax Description

type number	Type and number of the interface over which the packets being captured travel.
start	Initiates a packet capture sequence.
stop	Halts a packet capture sequence.
clear	Clears the packet capture buffer.
copy	Copies the contents of the packet capture buffer to an external device.
memory-device	External memory device to which captured packets are transmitted. Options are flash:, tftp:, or usbflash0:.

Command Default

This command has no defaults.

Command Modes

Privileged EXEC.

Command History

Release	Modification
12.4(11)T	This command was introduced.

Usage Guidelines

Use the traffic-export command to control the operation of IP traffic capture mode in IP traffic export. The operator uses CLI commands to start or stop capture of packets flowing across a monitored interface, to copy the captured packets to an external memory device, or to clear the internal buffer which holds the captured packets.

Examples

The following example illustrates the use of the traffic-export command to initiate the capture of packets on interface FastEthernet 0/0.

Router# traffic-export interface fastethernet 0/0 start

%RITE-5-CAPTURE_START: Started IP traffic capture for interface FastEthernet0/0

router#

The following example illustrates the use of the traffic-export command to halt the packet capture sequence on interface FastEthernet 0/0.

Router# traffic-export interface fastethernet 0/0 stop

%RITE-5-CAPTURE_STOP: Stopped IP traffic capture for interface FastEthernet0/0

router#

The following example illustrates the use of the traffic-export command to copy the contents of the packet capture buffer to an external memory device. The example of the interactive dialog identifies the external memory device and the remote host in which it resides.

Router# traffic-export interface fastethernet0/0 copy tftp:

Address or name of remote host []? 172.18.207.15

Capture buffer filename []? atmcapture

Copying capture buffer to tftp://172.18.207.15/atmcapture !!

router#

The following example illustrates the use of the traffic-export command to clear the packet capture buffer that is in local memory.

Router# traffic-export interface fastethernet 0/0 clear

%RITE-5-CAPTURE_CLEAR: Cleared IP traffic capture buffer for interface FastEthernet0/0

router#

Related Commands

Command	Description
ip traffic-export apply profile	Applies an IP traffic export or IP traffic capture profile to a specific interface.
ip traffic-export profile	Creates an IP traffic export or IP traffic capture profile on an ingress interface.

Feature Information for IP Traffic Export

Table 1 lists the release history for this feature.

Not all commands may be available in your Cisco IOS software release. For release information about a specific command, see the command reference documentation.

Use Cisco Feature Navigator to find information about platform support and software image support. Cisco Feature Navigator enables you to determine which Cisco IOS and Catalyst OS software images support a specific software release, feature set, or platform. To access Cisco Feature Navigator, go to http://www.cisco.com/go/cfn. An account on Cisco.com is not required.

---

Note Table 1 lists only the Cisco IOS software release that introduced support for a given feature in a given Cisco IOS software release train. Unless noted otherwise, subsequent releases of that Cisco IOS software release train also support that feature.

---

Table 1 Feature Information for IP Traffic Export

Feature Name	Releases	Feature Information
Router IP Traffic Export	12.2(25)S 12.3(4)T	IP traffic over selected interfaces may be exported over a LAN or VLAN interface for monitoring or analysis. The following sections provide information about this feature: •Configuring IP Traffic Export
Router IP Traffic Export Packet Capture Enhancements	12.4(11)T	IP traffic over selected interfaces may be captured in local router memory and then dumped to external memory. This feature is supported only on Cisco 1841, Cisco 2800 series, and Cisco 3800 series routers. The following sections provide information about this feature: •Configuring IP Traffic Capture

Any Internet Protocol (IP) addresses used in this document are not intended to be actual addresses. Any examples, command display output, and figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses in illustrative content is unintentional and coincidental.

© 2006 Cisco Systems, Inc. All rights reserved.
