Security Target For Cisco IOS IPSec
March 2007Version: 1.0Conventions
The notation, formatting, and conventions used in this Security Target document are consistent with the conventions used in Version 2.3 of the Common Criteria (CC) document. Selected presentation choices are discussed here to aid the Security Target reader. The CC allows several operations to be performed on functional requirements; refinement, selection, assignment and iteration are defined in paragraph 4.4.1.3.4 of Part 1 of the CC [CC1]. Refinements are indicated by bold text and strike through. Selections are enclosed in [square brackets]; assignments are enclosed in [square brackets] and underlined. Iterations are numbered in sequence, as appropriate.
Terminology
In the CC document, many terms are defined in Section 2.3 of Part 1. The terms listed in Table 1 The are a subset of those definitions, and are listed here to aid the user of the Security Target.
The terminology in Table 2 is specific to the TOE and its environment; these definitions are also provided to aid the user of the Security Target.
Table 3 lists abbreviations that are used when referring to Cisco routers.
Document Organization
Section 1 provides the introductory material for the security target.
Section 2 provides general purpose and TOE description.
Section 3 provides a discussion of the expected environment for the TOE. This section also defines the set of threats that are to be addressed by either the technical countermeasures implemented in the TOE hardware or software or through the environmental controls.
Section 4 defines the security objectives for both the TOE and the TOE environment.
Section 5 contains the functional and assurance requirements derived from the Common Criteria, Part 2 and Part 3, respectively, that must be satisfied by the TOE.
Section 6 presents the Security Functions implemented by the TOE and the Assurance Measures applied to ensure their correct implementation.
Section 7 provides the Protection Profile claims made by this Security Target.
Section 8 provides a rationale to explicitly demonstrate that the information technology security objectives satisfy the policies and threats. Arguments are provided for the coverage of each policy and threat. The section then explains how the set of requirements are complete relative to the objectives, and that each security objective is addressed by one or more component requirements. Arguments are provided for the coverage of each objective.
Section 8 also provides a set of arguments that address dependency analysis, strength of function issues, and the internal consistency and mutual supportiveness of the requirements. A reference section is provided to identify background material.
Section 1: Introduction
1.1 Identification
Title: Security Target for Cisco IOS IPSec Version 1.0
Authors: Cisco Systems, Inc.
Last Updated: October, 2007
CC Version: Common Criteria for Information Technology Security Evaluation, Version 2.3
Keywords: IPSec
1.2 Security Target Overview
The TOE is the implementation of the IPSec security standard within Cisco Systems routers. Routers are used to construct IP networks by interconnecting multiple smaller networks or network segments. IPSec provides confidentiality, authenticity and integrity for IP data transmitted between trusted (private) networks over untrusted (public) links or networks. The TOE therefore provides confidentiality, authenticity and integrity for IP data transmitted between Cisco Systems routers. A common application of this functionality is the construction of Virtual Private Networks (VPNs).
The TOE is called Cisco IOS IPSec.
Routers are dedicated hardware devices with purpose written software, which perform many networking functions. The TOE only addresses the following:
•
IPSec function
•
Table 4 lists the Cisco Systems products that are supported by this TOE.
Note
1.3 CC Conformance Claim
This TOE conforms with Part 2 and Part 3 of the CC, version 2.3.
2.0 TOE Description
This section provides context for the TOE evaluation by identifying the product type and describing the evaluated configuration.
2.1 Product Type
The TOE operates within routers (which are internetworking devices) running the Cisco Internetwork Operating System (IOS).
Routers that support the TOE have a number of common hardware characteristics.
•
•
•
•
•

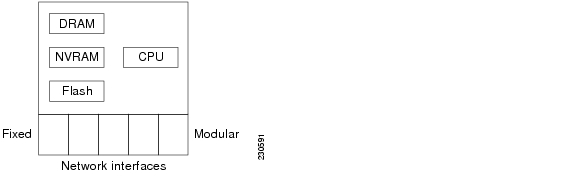

Figure 1 Common Hardware Components of a Cisco Router
The basic operation of a router is as follows:
1.
2.
3.
2.1.1 Cisco IOS Routers
Routers forward packets from one network segment to another based on network layer information (such as an IP address). Interconnected routers will exchange information to determine the optimal path along which network traffic should be forwarded. The primary function of a router is to provide connectivity between networks of end systems. Routers can also filter packets to permit or deny packet flows.
All Cisco routers use common operating system software called the Internetwork Operating Systems (IOS). For a Cisco router to be compliant with the TOE, it must be equipped with the appropriate version of the Cisco IOS software that includes the IPSec function and configured in accordance with the TOE. The TOE-compliant routers and Cisco IOS software versions are identified in Table 4.
2.2 General TOE Functionality
The primary security function of the TOE is the use of IPSec to provide confidentiality, authenticity, and integrity services for packet flows. Other functions of the TOE support this primary function.
This section describes IPSec options that are supported by the TOE and the TOE functions that support IPSec. A more detailed description of the operation of IPSec can be found in Appendix A.
2.2.1 IPSec

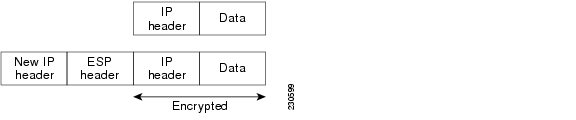

IPSec is a proposed Internet standard developed by the IETF and described in RFCs 2401-2410 and 2451. It provides network data encryption at the IP packet level to guarantee the confidentiality, authenticity, and integrity of IP packets. IPSec only supports IP packets; other network protocols must be encapsulated within IP to be encrypted with IPSec.
Individual IP packets encrypted with IPSec can be detected during transmission, but the IP packet contents (payload) cannot be read. IPSec encrypted packets are forwarded through an IP network in exactly the same manner as normal IP packets, allowing IPSec encrypted packets to be transported across networks and internetworking devices that do not participate in IPSec.
The actual encryption and decryption of IP packets occurs only at devices that are capable of, and configured for, IPSec. When an IP packet is transmitted or received by an IPSec-enabled device, it is encrypted or decrypted only if the packet meets criteria defined by the administrator. These criteria are typically described in the form of access-lists.
Internetworking devices such as routers are used to connect networks together to form larger networks. They are therefore logical places in which to implement IPSec to provide confidentiality, authenticity, and integrity for packet flows passing from one network to another.
This is the functionality described by the TOE; for example, internetworking devices compliant with the TOE are deployed at the edges of untrusted networks (such as the Internet), to provide secure communications between two trusted networks that are physically separated. Cleartext (unencrypted) packet flows that enter an internetworking device from the trusted network side are encrypted by the TOE and forwarded across the untrusted network. When the encrypted packet flow reaches the remote internetworking device, the TOE decrypts the traffic before forwarding it into the remote secure network. IP Packets are encrypted at one internetworking device's outbound interface and decrypted at the other device's inbound interface.
Table 5 lists the IPSec options that are supported by the TOE.
Note
2.2.2 Inbound Filtering
To enable a router that is configured with IPSec to be "self defending," the TOE includes the inbound filtering functions of the router operating system. This allows (for example) IP packets that are not IPSec to be ignored by the router, which is particularly important as the TOE will typically operate in a router connected to an untrusted network.
2.2.3 Administration
Since the IPSec function is embedded within the router operating system software, configuration, management and operation of IPSec must be undertaken through the normal IOS administrative interfaces provided by the router (console, Telnet, SNMP, syslog, etc). Therefore, the TOE includes these functions. To ensure that only authorized administrators can gain secure access to these interfaces, the security target specifies that remote management be conducted from a management station connected to a trusted network behind a TOE-enabled router with IPSec connections to the remote routers (see section 2.4). Furthermore, to exclude the possibility that the TOE operation could be modified via SNMP, SNMP is supported only in read-only mode.
2.3 Scope and Boundaries
2.3.1 Logical
The TOE is a software function, with optional hardware acceleration, within Cisco routers. Routers are dedicated hardware devices with purpose written software that perform many networking functions. The TOE only addresses:
•
•

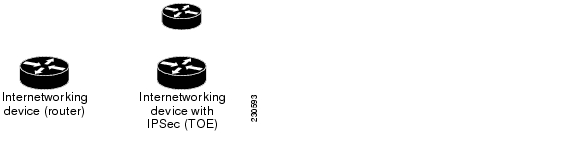

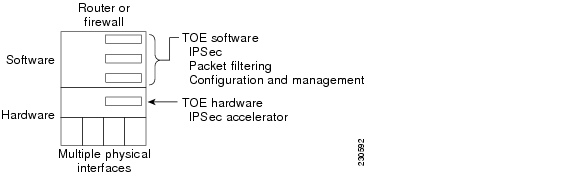

IPSec within the TOE is shown in Figure 2. (Note that the IPSec hardware provides no additional functions other than increasing performance of the IPSec function.)
Figure 2 IPSec Within the TOE

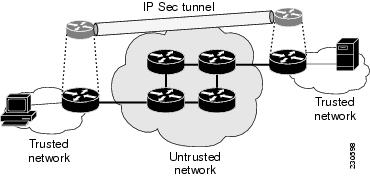

Figure 3 illustrates how the TOE operates as an overlay capability to a standard internetworking device.
Figure 3 TOE Overlay Capability
2.3.2 Physical
The products in which the TOE resides are internetworking devices (routers) and have two or more network interfaces. When the TOE is in use, at least one of the network interfaces of the internetworking device will be attached to a trusted network, and at least one other interface will be attached to an untrusted network. The TOE configuration will determine how packet flows received on one interface will be transmitted on another. Typically, for packet flows that are to be protected by the TOE security functions, packet flows received on trusted network interfaces will be encrypted using IPSec before being transmitted out an untrusted interface.
2.4 Application Note
The products defined by the TOE are used to construct secure Intranets and Extranets.
2.4.1 Secure Intranets
Within an Intranet, there can be some network segments that are not trusted because they are physically insecure or outside the control of the owners of the Intranet. Examples of untrusted network segments include wide area links provided by a carrier, microwave links, wireless links, and links shared with other organizations. (See Figure 4)

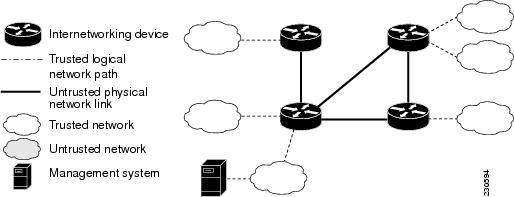

Figure 4 Insecure Intranet
The Intranet may also include transmission paths that cross an insecure network that is not controlled by the owner of the Intranet. A common example is the interconnection of two networks trusted by the same organization over the Internet.
In both cases, the Intranet owner may wish to provide confidentiality, authenticity, and integrity for packet flows transmitted over the untrusted portions of the Intranet. The TOE provides this as a functional extension to existing internetworking devices, thereby, creating a secure Intranet. (See Figure 5)

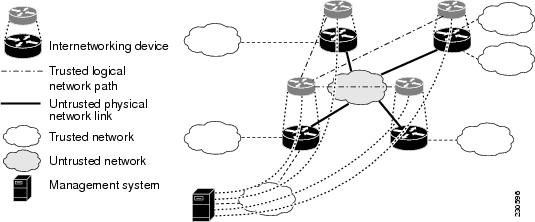

Figure 5 Secure Intranet
Note
2.4.2 Extranets
The TOE enables two or more Intranets, interconnected by an untrusted network such as the public Internet, to exchange packet flows in a manner that guarantees the confidentiality, authenticity, and integrity of each packet flow. (See Figure 6)

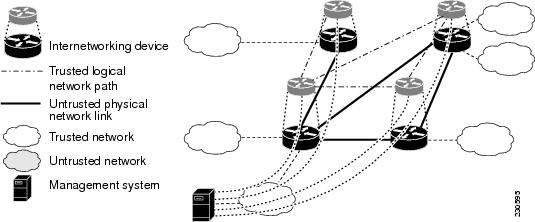

Figure 6 Secure Extranet
3. TOE Security Environment
To clarify the nature of the security problem that the TOE is intended to solve, this section describes the following:
•
•
•
3.1 Secure Usage Assumptions
Table 6 lists assumptions that are made in relation to the operation of TOE.
3.2 Threats to Security
The Threat agents against the TOE are attackers with expertise, resources, and motivation that combines to be a low attack potential.
3.2.1 Threats Addressed by the TOE
TOE addresses threats listed in Table 7.
3.2.3 Organization Security Policies
Table 8 describes the organizational security policies relevant to the operation of the TOE.
The organizational security policy, P.Connectivity, is required because it determines how packet flows between trusted networks can be transmitted over an untrusted network. Each instance of the TOE implements a portion of P.Connectivity, which must be matched to, and consistent with, other instances of the TOE for the TOE security functions to be effective.
For example, in Figure 7, an instance of the TOE, D1, has three trusted networks attached to it—N1, N2, N3. It implements a policy highlighted in the table below for three trusted network to network packet flows and three secure management packet flows that cross the untrusted network, U1.

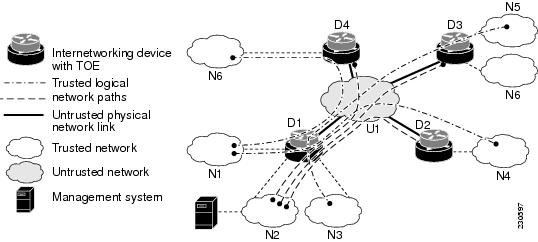

Figure 7 Organizational Security Policy
Note
4. Security Objectives
The security objectives are a high-level statement of the intended response to the security problem. These objectives indicate how the security problem, as characterized in the "Security Environment" section of the ST (see the section "3. TOE Security Environment"), is to be addressed.
Table 9 describes security objectives for the TOE, while Table 10 describes objectives for the environment.
4.1 Security Objective for the TOE
4.2 Security Objectives for the Environment
5. IT Security Requirements
5.1 TOE Security Functional Requirements
The TOE functional security requirements are drawn from [CC] Part 2, with the exception of FAU_AUD.1, which is a bespoke security functional component, based on the [CC] Part 2 component FAU_GEN.1.
It was found to be necessary to include FAU_AUD.1 instead of FAU_GEN.1 as the requirements imposed by FAU_GEN.1 are not appropriate for the TOE. The TOE does not record the startup and shutdown of audit functions as the TOE has no facility to shutdown the audit functionality. Additionally, the TOE is designed to remain operational at all times, making the requirement for audit of startup and shutdown redundant.
Selections are enclosed in [square brackets], assignments are enclosed in [square brackets and underlined], refinements are in bold and/or strikethrough.
5.1.1. Audit data generation (FAU_AUD.1)
The TSF shall be able to generate an audit record of the following auditable events:
a.
b.
Errors during IPSEC processing,
When a packet matches a filtering rule, and
Errors during digital certificate processing ]The TSF shall record within each audit record at least the following information:
c.
d.
5.1.2. Audit Review (FAU_SAR.1)
The TSF shall provide [authorized users] with the capability to read [all audit information] from the audit records.FAU_SAR1.1
The TSF shall provide the audit records in a manner suitable for the user to interpret the information.FAU_SAR.1.2
5.1.3. Enforced proof of origin (FCO_NRO.2)
The TSF shall enforce the generation of evidence of origin for transmitted [IP packets protected by the information flow control policy] at all times.FCO_NRO.2.1
The TSF shall be able to relate the [IPSec SA peer] of the originator of the information, and the [digital signature] of the information to which the evidence applies.FCO_NRO.2.2
The TSF shall provide a capability to verify the evidence of origin of information to [the receiving TOE] given [the successful establishment of an IPSec SA with the transmitting TOE].FCO_NRO.2.3
5.1.4. Cryptographic key generation (FCS_CKM.1) (1) RSA
The TSF shall generate cryptographic keys in accordance with a specified cryptographic key generation algorithm [RSA] and specified cryptographic key sizes [512, 1024 bits] that meet the following: [PKCS #1].FCS_CKM.1.1
5.1.5. Cryptographic key generation (FCS_CKM.1) (2) Diffie-Hellman
The TSF shall generate cryptographic keys in accordance with a specified cryptographic key generation algorithm [Diffie-Hellman key agreement] and specified cryptographic key sizes [56 bit, 168 bit] that meet the following: [PKCS #3].FCS_CKM.1.1
5.1.6 - Cryptographic key destruction (FCS_CKM.4)
The TSF shall destroy cryptographic keys in accordance with a specified cryptographic key destruction method [overwrite] that meets the following: [no standard].FCS_CKM.4.1
5.1.7 - Cryptographic operation (FCS_COP.1(1)) - Encryption
The TSF shall perform [bulk encryption and decryption] in accordance with a specified cryptographic algorithms [3DES, AES] and cryptographic key sizes [168 bit (3DES) and 128, 192, or 256 bit (AES)] that meet the following: [FIPS 46-3, FIPS 197].FCS_COP.1.1
5.1.8 - Cryptographic operation (FCS_COP.1(2)) - Signing
The TSF shall perform [digital signing and signature verification] in accordance with a specified cryptographic algorithm [SHA-1, MD5] and cryptographic key sizes [160 bit, 128 bit] that meet the following: [RFC 2404, RFC 2403].FCS_COP.1.1
5.1.9 - Subset information flow control (FDP_IFC.1)
The TSF shall enforce the [information flow control SFP] on [
Subject: instances of the TOE
Information: packet flows
Operations: IP packet forwarding, secure remote management].FDP_IFC.1.1
5.1.10 - Simple security attributes (FDP_IFF.1)
The TSF shall enforce the [information flow control SFP] based on the following types of subject and information security attributes: [
Subject (TOE instance) Security Attributes
•
•
Information Security Attributes
•
•
•
•
The TSF shall permit an information flow between a controlled subjects and of controlled information via a controlled operation if the following rules hold: [if one TOE instance (subject) can authenticate another TOE instance (subject) through the establishment of an IPSec Security Association using the configured policy and identity credentials of the TOE instances]. FDP_IFF.1.2
The TSF shall enforce [no additional information flow control SFP rules].FDP_IFF.1.3
The TSF shall provide the following [inbound packet filtering] additional capabilities.FDP_IFF.1.4
The TSF shall explicitly authorize an information flow based on the following rules: [none].FDP_IFF.1.5
The TSF shall explicitly deny an information flow based on the following rules:[the administrator-configured explicit "deny" rules based on the above Information Security Attributes].FDP_IFF.1.6
5.1.11 - Basic data exchange confidentiality (FDP_UCT.1)
The TSF shall enforce the [information flow control SFP] to be able to [transmit and receive] objects in a manner protected from unauthorized disclosure.FDP_UCT.1.1
5.1.12 - Data exchange integrity (FDP_UIT.1)
The TSF shall enforce the [information flow control SFP] to be able to [transmit and receive] user data packet flows in a manner protected from [modification, insertion and replay] errors.FDP_UIT.1.1
The TSF shall be able to determine on receipt of user data a packet flow, whether [modification, insertion and replay] has occurred. FDP_UIT.1.2
5.1.13 - User authentication before any action (FIA_UAU.2)
The TSF shall require each user to be successfully authenticated before allowing any other TSF-mediated actions on behalf of that user.FIA_UAU.2.1
5.1.14 - Multiple authentication mechanisms (FIA_UAU.5)
The TSF shall provide [password only mechanism; or the combination of username with matching password] to support user authentication.FIA_UAU.5.1
The TSF shall authenticate any user's claimed identity according to the [mechanism as defined in the TOE configuration by the privileged administrator]. FIA_UAU.5.2
5.1.15 - User identification before any action (FIA_UID.2)
The TSF shall require each user to identify itself before allowing any other TSF-mediated actions on behalf of that user. FIA_UID.2.1
5.1.16 - Management of security functions behavior (FMT_MOF.1)
The TSF shall restrict the ability to [determine the behavior of, disable, enable, and modify the behavior of] the functions [that implement the information flow control SFP] to [privileged administrators]. FMT_MOF.1.1
5.1.17 - Management of security attributes (FMT_MSA.1)
The TSF shall enforce the [information flow control SFP] to restrict the ability to [
a.
b.
the security attributes [TSF configuration] to [
a.
b.
Application Note: the administrator can only query, whereas the privileged administrator can query modify and delete the TSF configuration.
5.1.18 - Secure security attributes (FMT_MSA.2)
The TSF shall ensure that only secure values are accepted for security attributes.FMT_MSA.2.1
5.1.19 - Static attribute initialization (FMT_MSA.3)
The TSF shall enforce the [information flow control SFP] to provide [restrictive] default values for security attributes that are used to enforce the SFP.FMT_MSA.3.1
The TSF shall allow the [privileged administrator] to specify alternative initial values to override the default values when an object or information is created. FMT_MSA.3.2
5.1.20 - Management of TSF data (FMT_MTD.1)
The TSF shall restrict the ability to [
a.
b.
the [TSF configuration] to [
a.
b.
Application Note: the administrator can only query, whereas the privileged administrator can query modify and delete the TSF configuration.
5.1.21Specification of Management Functions (FMT_SMF.1)
The TSF shall be capable of performing the following security management functions: [
a.
b.
c.
d.
e.
f.
g.
]. FMT_SMF.1.1
5.1.22 - Restrictions on security roles (FMT_SMR.2)
The TSF shall maintain the roles: [administrator and privileged administrator]. FMT_SMR.2.1
The TSF shall be able to associate users with roles.FMT_SMR.2.2
The TSF shall ensure that the conditions [that a user has to be authenticated as an administrator before they can be allowed to authenticate as a privileged administrator] are satisfied.FMT_SMR.2.3
5.1.23 - Assuming roles (FMT_SMR.3)
The TSF shall require an explicit request to assume the following roles: [privileged administrator]. FMT_SMR.3.1
5.1.24 - Reliable time stamps (FPT_STM.1)
The TSF shall be able to provide reliable time stamps for its own use. FPT_STM.1.1
5.1.25 - Abstract machine testing (FPT_AMT.1)
The TSF shall run a suite of tests [during initial start-up] to demonstrate the correct operation of the security assumptions provided by the abstract machine that underlies the TSF.FPT_AMT.1
5.1.26 - TSF testing (FPT_TST.1)
The TSF shall run a suite of self tests [during initial start-up] to demonstrate the correct operation of [the TSF].FPT_TST.1.1
The TSF shall provide authorized users with the capability to verify the integrity of [TSF data]. FPT_TST.1.2
The TSF shall provide authorized users with the capability to verify the integrity of stored TSF executable code.FPT_TST.1.3
5.1.27 - TOE session establishment (FTA_TSE.1)
The TSF shall be able to deny session establishment based on [access control list specifying a combination of source/destination IP address and source/destination TCP/UDP port number].FTA_TSE.1.1
5.1.28 - Inter-TSF trusted channel (FTP_ITC.1)
The TSF shall provide a communication channel between itself and a remote trusted IT product that is logically distinct from other communication channels and provides assured identification of its end points and protection of the channel data from modification or disclosure.FTP_ITC.1.1
The TSF shall permit [the TSF] to initiate communication via the trusted channel.FTP_ITC.1.2
The TSF shall initiate communication via the trusted channel for [the secure transmission of packet flows between trusted networks, and secure administration and operation of the TOE].FTP_ITC.1.3
5.2 TOE Security Assurance Requirements
The TOE meets all the Assurance Requirements prescribed by EAL2 in Part 3 of the CC. The requirements are summarized by Assurance Class in Table 11.
6. TOE Summary Specification
This section presents the Security Functions implemented by the TOE and the Assurance Measures applied to ensure their correct implementation.
6.1 IT Security Functions
This section presents the security functions performed by the TOE and provides a mapping between the identified security functions and the Security Functional Requirements that it must satisfy.
6.1.1 IPSec Implementation
The TOE implements the IETF IPSec protocols (RFCs 2401-2410) to provide confidentiality, authenticity and integrity for packet flows transmitted from and received by the TOE. The TOE IPSec implementation contains a number of functional components that meet the IPSec TSF.
IPSEC.1 - IPSec Internet Key Exchange (IKE)
IKE authenticates IPSec peers (remote TOEs) using pre-shared keys, RSA keys,1 or digital certificates. It also handles the agreement of secure session keys using the Diffie-Hellman algorithm and negotiates the parameters used during IPSec ESP (IPSEC.2)
IKE maintains a trusted channel, referred to as a Security Association (SA), between IPSec peers that is also used to manage IPSec connections, including:
•
•
•
IPSEC.2 - IPSec Encapsulating Security Payload (ESP)
The TOE uses ESP to protect packet flows between IPSec peers (instances of the TOE) across intervening untrusted networks in accordance with a TOE security policy (TSP). ESP is a method of encapsulating IP Packets and provides confidentiality using the 3DES and AES ciphers, integrity and authenticity using the MD5 and SHA-1 algorithms, and a mechanism to detect the capture and retransmission of packets (replay attacks).
The parameters used by ESP, including session encryption keys, are negotiated via IPSec security associations (SAs) established via IKE (IPSEC.1) in accordance with the TSP. Note that security associations are unidirectional so that between IPSec peers protecting a packet flow (labelled A and B for example) there are at least two SA's - one from A to B and one from B to A. Each SA, and associated session encryption key, has a lifetime, which upon expiry results in a new SA and session encryption key being established by the SA peers.
The packet flows between two remote IPSec peers that are to be protected by the TOE are defined by way of cryptographic maps (IPSEC.3).
IPSEC.3 - Cryptographic Maps
Cryptographic Maps are used by the TOE to specify:
a.
b.
c.
d.
6.1.2 Packet Filtering
The TOE prevents attempts to establish management control connections to the TOE itself by rejecting packet flows (such as IP packets) that are not consistent with the information flow SFP.
PACKETFILTER.1 - Packet Filtering
The TOE performs input packet filtering by applying an access-control list to specific interfaces of the TOE-enabled router. The access-control list can include IP protocol, source/destination IP address and source/destination UDP/TCP port number. Packets not matching the access-list are logged and discarded by the router.
6.1.3 Configuration and Management
The TOE includes functions that allow the configuration and operation of the security functions of the TOE to be controlled and monitored. The TOE also supports the ability to maintain real time.
CONFIG.1 - System Messages
The TOE generates system diagnostic messages that identify specific TOE operations - errors during IKE negotiation, errors during IPSec processing, whenever a packet matches a filtering rule, and any errors encountered during digital certificate processing. For each event, the TSF shall record the date and time of each event, the type of event, the affected subject identity and the outcome of the event (FAU_AUD.1).
Logged messages for these events can be directed to a combination of an interactive management session, a buffer within the TOE or to an external system outside of the TOE using the SYSLOG protocol. Using the show logging command, the authorized user can review the audit messages stored in the buffer on the TOE and act upon them as required. (FAU_SAR.1)
CONFIG.2 - Management Interfaces
The TOE can be configured, managed and operated either via direct local connection to a physical console port, or remotely via an in-band network connection. All management connections must be explicitly enabled to be used, these include:
•
•
•
Interactive CLI connections (console or telnet) require user authentication. The TOE shall be configured to require an access password, which provides unprivileged access and an enable password which provides privileged management access. The unprivileged administrator can only query the TOE configuration. After successful authentication via the CLI interface, an authorized user can upload or download configuration files to/from a TFTP server.
The privileged administrator has control over all TOE functions, attributes, and data, either by executing commands, viewing status and configuration, or editing the TOE configuration settings. The default configuration will be secure so that packet flows will not occur. The privileged administrator has the right to change from the default to allow packet flows.
The TOE will conduct self-tests upon startup to verify that it is operating correctly.
CONFIG.3 - Management of Time
The TOE maintains real time using a reliable software clock that interfaces to an internal hardware clock, or the Network Time Protocol (NTP).
6.1.4 Key Management
To support the authentication of one TOE to another TOE, the TOE supports the use of public key cryptography.
KEYMGT.1 - Key Management
The TOE generates secure RSA public/private keys (512 and 1024 bit key lengths) for use with a Public Key Infrastructure (PKI). The TOE interacts with a certificate authority using the Simple Certificate Enrollment Protocol (SCEP) to download a certificate authority's digital certificate and to request and download a digital certificate for the TOE itself. The TOE can destroy keys it creates by overwriting them.
Table 12 Mapping Summary Specifications to Functional Requirements
IPSEC.1
IPSec Internet Key Exchange (IKE
FCS_CKM.1(2)
FTP_ITC.1
FMT_MSA.2
Cryptographic key generation (Diffie Hellman)
Inter-TSF trusted channel
Secure security attributes
IPSEC.2
IPSec Encapsulating Security Payload (ESP)
FCO_NRO.2
FCS_COP.1 (1)
FCS_COP.1 (2)
FDP_UCT.1
FDP_UIT.1
FTP_ITC.1
Enforced proof of origin
Cryptographic operation (Encryption)
Cryptographic operation (Signing)
Basic data exchange confidentiality
Data exchange integrity
Inter-TSF trusted channel
IPSEC.3
Cryptographic Maps
FDP_IFC.1
FDP_IFF.1
FTP_ITC.1
Subset information flow control
Simple security attributes
Inter-TSF trusted channel
PACKETFILTER.1
Packet Filtering
FTA_TSE.1
FDP_IFF.1
FDP_IFC.1
TOE session establishment
Simple security attributes
Subset information flow control
CONFIG.1
System Messages
FAU_AUD.11
FAU_SAR.1
FMT_SMF.1
Audit data generation
Audit Review
Specification of Management Functions
CONFIG.2
Management Interfaces
FIA_UAU.2
FIA_UAU.5
FIA_UID.2
FMT_SMR.2
FMT_SMR.3
FMT_MOF.1
FMT_MSA.1
FMT_MSA.3
FMT_MTD.1
FPT_AMT.1
FPT_TST.1
FMT_SMF.1
User authentication before any action
Multiple authentication mechanisms
User identification before any action
Restrictions on security roles
Assuming roles
Management of security functions behavior
Management of security attributes
Static attribute initialization
Management of TSF data
Abstract machine testing
TSF testing
Specification of Management Functions
CONFIG.3
Management of Time
FPT_STM.1
FMT_SMF.1
Reliable time stamp
Specification of Management Functions
KEYMGT.1
Key Management
FCS_CKM.1 (1)
FCS_CKM.4
FMT_MSA.2
Cryptographic key generation
Cryptographic key destruction
Secure security attributes
1 FAU_AUD.1 is a bespoke component based on the [CC] Part 2 component FAU_GEN.1.
6.2 Assurance Measures
The purpose of this section is to show that the identified assurance measures are appropriate to meet the assurance requirements by mapping the identified assurance measures onto the assurance requirements.
The Assurance Measures that demonstrate the correct implementation and use of the Security Functions of the TOE are as follows:
•
•
•
•
•
•
Table 13 demonstrates that the identified assurance measures completely meet the assurance requirements by showing that all requirements are mapped to an assurance measure.
The assurance measures documents have been specifically written to meet the assurance requirements and are structured as follows:
User Guidance (UG)
•
•
•
Functional Specification (FSP)
•
•
•
High Level Design (HLD)
•
•
Configuration Management Plan (CMP)
•
•
Analysis of Testing (ATE)
•
•
•
Vulnerability Assessment (VA)
•
•
7. PP Claims
This Security Target was not written to conform to any Protection Profile.
8. Rationale
8.1 Security Objectives Rationale
The purpose of the rationale is to demonstrate that the identified security objectives are:
•
•
8.1.1 All Assumptions, Policies, and Threats Addressed
8.1.2 Sufficiency of Security Objectives
Table 15, Table 16, and Table 17 list the sufficiency of the Security Objectives outlined in Table 14.
8.2 Security Requirements Rationale
The purpose of this section is to show that the identified security requirements (See section 5. IT Security Requirements) are suitable to meet the security objectives (See section 4. Security Objectives). The following tables show that each security requirement (and SFRs in particular) is necessary; that is, the tables show that each security objective is addressed by at least one security requirement, and that each security requirement is addressed by at least one security objective.
8.2.1 Functional Security Requirements Rationale
Table 18 Functional Component to Security Objective MappingS
Confidentiality
OperationFAU_AUD.11
X
FAU_SAR.1
X
FCO_NRO.2
X
X
FCS_CKM.1(1)
X
FCS_CKM.1(2)
X
FCS_CKM.4
X
FCS_COP.1(1)
X
FCS_COP.1(2)
X
X
FDP.IFC.1
X
X
X
X
FDP.IFF.1
X
X
X
X
FDP_UCT.1
X
FDP_UIT.1
X
FIA_UAU.2
X
FIA_UAU.5
X
FIA_UID.2
X
FMT_MOF.1
X
FMT_MSA.1
X
FMT_MSA.2
X
FMT_MSA.3
X
FMT_MTD.1
X
FMT_SMF.1
X
FMT_SMR.2
X
FMT_SMR.3
X
FPT_AMT.1
X
FPT_STM.1
X
FPT_TST.1
X
FTA_TSE.1
X
FTP_ITC.1
X
X
X
X
X
1 FAU_AUD.1 is a bespoke component based on the [CC] Part 2 component FAU_GEN.1
Table 19 SFR Sufficiency
O.AUTHENTICITY
Ensure packet flows have been received from a trusted sourceThe SFRs [FCO_NRO.2, FCS_COP.1(2), FDP_IFC.1, FDP_IFF.1, FTP_ITC.1] are sufficient to satisfy the objective because:
•
•
•
•
•
O.CONFIDENTIALITY
Protect the confidentiality of packet flows transmitted to/from the TOE over an untrusted network.The SFRs [FCS_COP.1(1), FDP_UCT.1, FDP_IFC.1, FDP_IFF.1, FTP_ITC.1] are sufficient to satisfy the objective because:
•
•
•
•
•
O.INTEGRITY
Any attempt to corrupt or modify a packet flow transmitted to/from the TOE is detected.The SFRs [FCS_COP.1(2), FDP_UIT.1, FDP_IFC.1, FDP_IFF.1, FTP_ITC.1] are sufficient to satisfy the objective because:
•
•
•
•
•
O.KEY-CONFIDENTIALITY
The TOE must provide the means of protecting the confidentiality of cryptographic keys when they are used to encrypt/decrypt packet flows between instances of the TOE and when kept in short and long-term storage.The SFRs [FCS_CKM.1 (1), FCS_CKM.1 (2), FCS_CKM.4, FMT_MSA.2, FDP_IFC.1, FDP_IFF.1, FTP_ITC.1] are sufficient to satisfy the objective:
•
•
•
•
•
•
•
O.NOREPLAY
Provide a means to detect if an eavesdropper has copied a packet flow and retransmitting it to the TOE.The SFRs [FCO_NRO.2, FDP_IFC.1, FDP_IFF.1, FTP_ITC.1] are sufficient to satisfy the objective because:
•
•
•
•
O.SECURE-OPERATION
Prevent unauthorized changes to TOE configuration.The SFRs [FTA_TSE.1, FIA_UAU.2, FIA_UAU.5, FIA_UID.2, FAU_AUD.11 , FAU_SAR.1, FMT_MOF.1, FMT_SMF.1, FMT_MSA.1, FMT_MSA.3, FMT_SMR.2, FMT_SMR.3, FMT_MTD.1, FPT_STM.1, FPT_AMT.1, FPT_TST.1] are sufficient to satisfy the objective because:
•
•
•
•
•
•
•
•
•
•
•
•
1 FAU_AUD.1 is a bespoke component based on the [CC] Part 2 component FAU_GEN.1.
8.2.2 Suitability of TOE Security Functions to Meet Security Requirements
Table 20 SFR to TSF Cross Reference
FAU_AUD.11
X
FAU_SAR.1
X
FCO_NRO.2
X
FCS_CKM.1(1)
X
FCS_CKM.1(2)
X
FCS_CKM.4
X
FCS_COP.1(1)
X
FCS_COP.1(2)
X
FDP.IFC.1
X
X
FDP.IFF.1
X
X
FDP_UCT.1
X
FDP_UIT.1
X
FIA_UAU.2
X
FIA_UAU.5
X
FIA_UID.2
X
FMT_MOF.1
X
FMT_MSA.1
X
FMT_MSA.2
X
X
FMT_MSA.3
X
FMT_MTD.1
X
FMT_SMF.1
X
X
X
FMT_SMR.2
X
FMT_SMR.3
X
FPT_AMT.1
X
FPT_STM.1
X
FPT_TST.1
X
FTA_TSE.1
X
FTP_ITC.1
X
X
X
1 FAU_AUD.1 is a bespoke component based on the [CC] Part 2 component FAU_GEN.1
FAU_AUD.1
The TSF CONFIG.1 satisfies this requirement by generating audit logs in accordance with the requirement.
FAU_SAR.1
The TSF CONFIG.1 satisfies this requirement by enabling the ability for authorized users to review the audit logs.
FCO_NRO.2
The TSF IPSEC.2 satisfies this requirement by supplying digital signatures on transmitted packets, with which non-repudiation can be established.
FCS_CKM.1 (1)
The TSF KEYMGT.1 satisfies this requirement by providing a mechanism for generating 512 and 1024-bit RSA keys.
FCS_CKM.1 (2)
The TSF IPSEC.1 satisfies this requirement by implementing the Diffie Hellman key agreement algorithm, which allows IPSec peers to agree upon 168-bit 3DES and 128, 192 or 256 bit AES session keys that will be used for bulk encryption.
FCS_CKM.4
The TSF KEYMGT.1 satisfies this requirement by supplying a mechanism for overwriting (destroying) cryptographic keys which the TOE creates.
FCS_COP.1 (1)
The TSF IPSEC.2 satisfies this requirement by providing a mechanism by which data within transmitted packets can be encrypted and decrypted.
FCS_COP.1 (2)
The TSF IPSEC.2 satisfies this requirement by providing a mechanism by which transmitted packets can be digitally signed, and digital signatures can be verified.
FDP_IFC.1
The TSFs IPSEC.3 and PACKETFILTER.1 satisfy this requirement by examining each packet flow and applying the information flow control policy to it.
FDP_IFF.1
The TSFs IPSEC.3 and PACKETFILTER.1 satisfy this requirement by implementing the crypto map function, which permits or deny a packet flow based on its source and destination IP address, and the packetfilter function which is applied to TOE interfaces to implements the information flow control SFP which defines the rules for packet filtering.
FDP_UCT.1
The TSF IPSEC.2 satisfies this requirement by providing encryption of the IP datagram as defined by ESP, thus providing confidentiality.
FDP_UIT.1
The TSF IPSEC.2 satisfies this requirement by providing ESP which signs an IP datagram providing integrity.
FIA_UAU.2
The TSF CONFIG.2 satisfies this requirement by requiring users to undergo authentication before access to its management interfaces is granted.
FIA_UAU.5
The TSF CONFIG.2 satisfies this requirement by requiring a username and password for user authentication, and just an "enable" password for privileged administrator authentication.
FIA_UID.2
The TSF CONFIG.2 satisfies this requirement by requiring users to undergo identification before access to its management interfaces is granted.
FMT_MOF.1
The TSF CONFIG.2 satisfies this requirement by allowing only the privileged administrator the right to manage the functions that implement the information flow control SFP.
FMT_MSA.1
The TSF CONFIG.2 satisfies this requirement by allowing only the privileged administrator the right to manage the configuration that implements the information flow control SFP.
FMT_MSA.2
The TSFs IPSEC.1 and KEYMGT.1 satisfy this requirement in generating only secure cryptographic keys i.e. those that are not weak or semi-weak.
FMT_MSA.3
The TSF CONFIG.2 satisfies this requirement by ensuring that restrictive default values are allocated to security attributes for the Information Flow Control SFP, and allowing the privileged administrator to alter the values from the default.
FMT_MTD.1
The TSF CONFIG.2 satisfies this requirement by only allowing the privileged administrator to alter the TSF configuration
FMT_SMF.1
The TSFs CONFIG.1, CONFIG.2 and CONFIG.3 satisfy this requirement as these TSFs provide all the means with which to interact with the security configuration of the TOE.
FMT_SMR.2
The TSF CONFIG.2 satisfies this requirement by maintaining administrator and privileged administrator roles and ensuring that a user is authenticated as an administrator before allowing them to authenticate as a privileged administrator by using the "enable" password.
FMT_SMR.3
The TSF CONFIG.2 satisfies this requirement by requiring the user to explicitly request using the "enable" command to assume the role of privileged administrator.
FPT_AMT.1
The TSF CONFIG.2 satisfies this requirement by initiating a suite of tests upon startup to ensure proper operation of the underlying abstract machine which underlies the TOE.
FPT_STM.1
The TSF CONFIG.1 satisfies this requirement by monitoring the network time and using the timestamp in audit records.
FPT_TST.1
The TSF CONFIG.2 satisfies this requirement by initiating a suite of tests upon startup to ensure proper operation of the TOE functions.
FTA_TSE.1
The TSF PACKETFILTER.1 satisfies this requirement by examining each packet and discarding those which do not match the access control list it holds.
FTP_ITC.1
The TSFs IPSEC.1, IPSEC.2 and IPSEC.3 satisfy this requirement by authenticating IPSec peers using pre-shared keys, RSA keys or digital certificates and establishing a trusted channel (called Security Associations) for the communication of information with assured identification of end-points; using ESP on IP datagrams to provide confidentiality, authentication, integrity and non-repudiation of sender; and maintaining a cryptographic map which ensures that packet flow source, destination and transmission parameters are controlled
8.2.3 SFR Dependency Rationale
Table 21 shows that the security target has been satisfied SFR's with dependencies.
Table 21 SFR Dependency Rationale
FAU_AUD.11
FPT_STM.1
FAU_SAR.1
FAU_AUD.1
FCO_NRO.2
FIA_UID.2
FCS_CKM.1
FCS_COP.1, FCS_CKM.4, FMT_MSA.2
FCS_CKM.4
FCS_CKM.1, FMT_MSA.2
FCS_COP.1
FCS_CKM.1, FCS_CKM.4, FMT_MSA.2
FDP_IFC.1
FDP_IFF.1
FDP_IFF.1
FDP_IFC.1, FMT_MSA.3
FDP_UCT.1
FTP_ITC.1, FDP_IFC.1
FDP_UIT.1
FDP_IFC.1, FTP_ITC.1
FIA_UAU.2
FIA_UID.2
FIA_UAU.5
N/A
FIA_UID.2
N/A
FMT_MOF.1
FMT_SMF.1, FMT_SMR.1 (satisfied by FMT_SMR.2)
FMT_MSA.1
FDP_IFC.1, FMT_SMF.1, FMT_SMR.1 (satisfied by FMT_SMR.2)
FMT_MSA.2
FDP_IFC.1, FMT_MSA.1, FMT_SMR.1 (satisfied by FMT_SMR.2)
FMT_MSA.3
FMT_MSA.1, FMT_SMR.1 (satisfied by FMT_SMR.2)
FMT_MTD.1
FMT_SMF.1, FMT_SMR.1 (satisfied by FMT_SMR.2)
FMT_SMF.1
N/A
FMT_SMR.2
FIA_UID.2
FMT_SMR.3
FMT_SMR.1 (satisfied by FMT_SMR.2)
FPT_AMT.1
N/A
FPT_STM.1
N/A
FPT_TST.1
FPT_AMT.1
FTA_TSE.1
N/A
FTP_ITC.1
N/A
1 The functional requirement FAU_AUD.1 is based on the [CC] Part 2 functional requirement FAU_GEN.1; thus, it is viewed that FAU_AUD.1 will have a dependency on FPT_STM.1
All functional component dependencies, with the exception of the dependency of FAU_SAR.1 on FAU_GEN.1 are met, as shown in Table 21. The component FAU_SAR.1 is concerned with audit review. The dependency of this component on FAU_GEN.1 relates to the fact that there must be audit events generated in order to review them. As FAU_AUD.1 generates audit events (in much the same way as FAU_GEN.1) it is appropriate to make FAU_SAR.1 dependent upon FAU_AUD.1 rather than FAU_GEN.1.
ADV_SPM.1 is identified as a dependency of FMT_MSA.2, which in turn is identified as a dependency for FCS_CKM.1 (1), FCS_CKM.1 (2), FCS_CKM.4, FCS_COP.1 (1), and FCS_COP.1 (2). The intent of FMT_MSA.2 is that values for security attributes must not violate the TSP. In the context of the FCS family, FMT_MSA.2 requires that the combination of cryptographic security attributes such as key length, key validity period and key use (such as digital signature, key encryption, data encryption) may only be set to values which maintain the `secure state' of the TOE. By ensuring that the TOE configuration is configured in accordance with the evaluated guidance, the security attributes of the TOE will be set to values which maintain a secure state; therefore, the dependency of FMT_MSA.2 on ADV_SPM.1 is satisfied (as per Section H2, paragraph 1020 of CC v2.3 part 2).
8.2.4 Assurance Security Requirements Rationale
This section shows how the minimum strength of function level for the ST is consistent with the security objectives for the TOE. This ST claims SOF-basic for the strength of function level of the TOE, as
•
•
The TOE is intended to be used in environments in which users require a low to moderate level of independently assured security in the absence of ready availability of the complete development record. CC Part 3 suggests CC EAL2 as suitable in these circumstances.
8.2.5 Mutually Supportive Security Requirements
The purpose of this rationale is to show that the IT security requirements (and the SFRs in particular) are complete and internally consistent by demonstrating that they are mutually supportive and provide an "integrated and effective whole".
Dependency helps in showing mutual support because if SFR-A is dependent on SFR-B then by definition, SFR-B is supportive of SFR-A. Table 21 shows the dependencies of the Security Functional Requirements.
This ST is targeting a standard EAL 2 assurance package and so the dependency and mutual support of the assurance requirements is self-evident as the EAL is taken from the CC.
Primary and Supporting SFRs
The objectives of the TOE, and the associated SFRs, can be separated into two groups:
1.
2.
The supporting SFRs provide the ability to securely configure, operate and manage the primary SFRs. Therefore, the primary objectives (to protect packet flows) are indirectly provided by the supporting SFRs. Thus, the supporting SFRs provide mutual support for the primary SFRs, as the supporting SFRs help defend the primary SFRs against attacks aimed at defeating the primary SFRs by gaining access to the configuration, operation and management functions of the TOE.
Table 22 Primary and Supporting SFRs
FCO_NRO.2, FCS_CKM.1 (1) FCS_CKM.1 (2), FCS_CKM.4, FCS_COP.1 (1), FCS_COP.1 (2), FDP_IFC.1, FDP_IFF.1, FDP_UCT.1, FDP_UIT.1, FTP_ITC.1
FAU_AUD.11 , FAU_SAR.1, FIA_UAU.2, FIA_UAU.5, FIA_UID.2, FMT_MOF.1, FMT_MSA.1, FMT_MSA.2, FMT_MSA.3, MFT_MTD.1, FMT_SMF.1, FMT_SMR.2, FMT_SMR.3, FPT_AMT.1, FPT_STM.1, FPT_TST.1, FTA_TSE.1
1 FAU_AUD.1 is a bespoke component based on the [CC] Part 2 component FAU_GEN.1.
Help prevent bypassing of other SFRs
FIA_UID.2 and FIA_UAU.2 support other functions that allow the user access to the assets by restricting the actions the user can take before being authorized.
The management function FMT_MSA.1 and FMT_MTD.1 support all other SFRs by restricting the ability to change certain management functions to authorized users, ensuring other users cannot circumvent these SFRs.
FMT_MSA.2 and FMT_MSA.3 limit the acceptable values for secure data, protecting the SFRs dependent on those values from being bypassed.
FPT_AMT.1 and FPT_TST.1 provides for start up and user initiated testing to ensure the security functions are operational, thus preventing their bypass.
FMT_SMF.1 provides for the necessary management functions with which to configure all security functions of the TOE.
Help prevent tampering of other SFRs
The cryptographic functions FCS_CKM.1, FCS_CKM.4 and FCS_COP.1 provide for the secure generation, handling, destruction and operation of keys, and therefore support those SFRs that may rely on the use of those keys.
FDP_UIT.1 supports all other SFRs that deal with data by maintaining data integrity.
FDP_UCT.1 supports all other SFR's that deal with data by maintaining data confidentiality.
FIA_UID.2 and FIA_UAU.2 support other functions that allow the user access to the assets by restricting the actions the user can take before being authorized.
FMT_MSA.1 and FMT_MTD.1 support all other SFRs by restricting the ability to change certain management functions to authorized users, ensuring other users cannot tamper with these SFRs.
FMT_MSA.2 and FMT_MSA.3 limit the acceptable values for secure data, protecting the SFRs dependent on those values from being tampered with.
FPT_AMT.1 and FPT_TST.1 provides for start up and user initiated testing to ensure the security functions are operational, thus checking for tampering.
FMT_SMF.1 provides for the necessary management functions with which to configure all security functions of the TOE.
Help prevent de-activation of other SFRs
The Information Flow Control policy detailed in FDP_IFF.1 along with the primary SFR's identified in table Table 22, provide for rigorous control of allowed data flow, preventing unauthorized deactivation of SFRs.
FMT_MSA.1 and FMT_MTD.1 support all other SFRs by restricting the ability to change certain management functions to authorized users, ensuring other users cannot de-activate these SFRs.
FMT_MSA.2 and FMT_MSA.3 limit the acceptable values for secure data, protecting the SFRs dependent on those values from being de-activated.
FPT_AMT.1 and FPT_TST.1 provides for start up and user initiated testing to ensure the security functions are operational, thus checking for de-activation.
FIA_UID.2 and FIA_UAU.2 support other functions that allow the user access to the assets by restricting the actions the user can take before being authorized.
FTA_TSE.1 supports other functions by allowing the TOE to block the establishment of a user session.
FMT_SMF.1 provides for the necessary management functions with which to configure all security functions of the TOE.
Enable detection of misconfiguration or attack of other SFRs
FAU_AUD.1 and FAU_SAR.1 support other functions by providing logging functions that allow misconfiguration and attacks to be detected.
FPT_AMT.1 supports other functions by providing a reliable timestamp for logging messages.
FMT_SMF.1 provides for the necessary management functions with which to configure all security functions of the TOE
8.2.6 Strength of Function Claims
The National Cryptographic Authority of each CC scheme is the approving authority on strength of cryptographic algorithms. Under these arrangements, the developers can make no claim of strength for cryptographic algorithms. Therefore the explicit strength of function claims for the FCS class of SFR's have been addressed. This also applies to the IT Security Functions IPSEC.1, IPSEC.2, and KEYMGT.1.
For SFR FIA_UAU.5 the strength of function claim is SOF-basic. A Strength of Function claim of SOF-basic is also made for IT Security Function CONFIG.2.
Appendix A—IPSec Operation
IPSec Standards
IPSec combines trusted security technologies into a complete system that provides confidentiality, integrity, and authenticity of IP packets.
These technologies include:
Diffie-Hellman key exchange for deriving key material between SA peers
Public key cryptography for signing the Diffie-Hellman exchanges to guarantee the identity of the two parties and avoid man-in-the-middle attacks
Bulk encryption algorithms, such as 3DES or AES, for encrypting the data
Keyed hash algorithms, such as HMAC, combined with traditional hash algorithms such as MD5 or SHA for providing packet authentication
Digital certificates signed by a certificate authority to act as digital ID cards
IPSec itself is broken into two parts:
The IP Security Protocol proper, which defines the information to add to an IP packet to enable confidentiality, integrity, and authenticity controls as well as defining how to encrypt the packet data. The TOE uses the IPSec Encapsulating Security Payload (ESP) in IPSec Tunnel mode.
Internet Key Exchange (IKE), which negotiates the security association between two entities and exchanges key material. It is not necessary to use IKE, but manually configuring security associations is a difficult and manually intensive process. IKE should be used in most real-world applications to enable large-scale secure communications.
Figure 8
IPSec Tunnel Mode
Figure 9
IPSec Encapsulating Security Payload
IPSec Security Associations
IPSec provides many options for performing network encryption and authentication. The TOE requires encryption, integrity and authentication. When the security service is determined, the two communicating nodes must determine exactly which algorithms to use (the TOE uses 3DES or AES for encryption; and SHA-1 for integrity). After deciding on the algorithms, the two devices must share session keys. The security association is the method that IPSec uses to track all the particulars concerning a given IPSec communication session. A Security Association (SA) is a relationship between two or more IPSec devices that describes how the entities will use security services to communicate securely.
An IPSec security association is unidirectional, meaning that for each pair of communicating IPSec devices there are at least two security connections - one from A to B and one from B to A. The security association is uniquely identified by a randomly chosen unique number called the security parameter index (SPI) and the destination IP address of the destination. When a system sends a packet that requires IPSec protection, it looks up the security association in its database, applies the specified processing, and then inserts the SPI from the security association into the IPSec header. When the IPSec peer receives the packet, it looks up the security association in its database by destination address and SPI and then processes the packet as required.
A special bi-directional SA, known as the IKE SA is used to establish and manage all IPSec SA's.
IPSec Operation
Authentication
IKE creates an authenticated, secure tunnel between two IPSec entities (such as the TOE) called the IKE SA, which is then used to negotiate the security associations for IPSec used to protect the packet flow. This process requires that the two entities authenticate themselves to each other and establish shared keys. IKE supports multiple authentication methods. The two entities must agree on a common authentication protocol through a negotiation process. The following mechanisms are supported in the TOE:
Pre-shared key
The same key is pre-installed on each device. IKE peers authenticate each other by computing and sending a keyed hash of data that includes the preshared key. If the receiving peer is able to independently create the same hash using its preshared key, it knows that both parties must share the same secret, thus authenticating the other party
Public key cryptography
Each party generates a pseudo-random number (a nonce) and encrypts it in the other party's public key. The ability for each party to compute a keyed hash containing the other peer's nonce, decrypted with the local private key as well as other publicly and privately available information, authenticates the parties to each other. This system provides for deniable transactions. That is, either side of the exchange can plausibly deny that it took part in the exchange. Currently only the RSA public key algorithm is supported.
Digital signature
Each device digitally signs a set of data and sends it to the other party. This method is similar to the previous one, except that it provides nonrepudiation. Currently both the RSA public key algorithm and the digital signature standard (DSS) are supported.
Key Exchange
Both parties must have a shared session key in order to encrypt the IKE tunnel. The Diffie-Hellman protocol is used to agree on a common session key. The exchange is authenticated as described above to guard against "man-in-the-middle" attacks.
These two steps, authentication and key exchange, create the IKE SA, a secure tunnel between the two devices. One side of the tunnel offers a set of algorithms, and the other side must then accept one of the offers or reject the entire connection. When the two sides have agreed on which algorithms to use, they must derive key material to use for IPSec with Authentication Headers (AH), ESP (Encapsulating Security Payload), or both together (the TOE uses ESP only). IPSec uses a different shared key than IKE. The IPSec shared key can be derived by using Diffie-Hellman again to ensure perfect forward secrecy, or by refreshing the shared secret derived from the original Diffie-Hellman exchange that generated the IKE SA by hashing it with pseudo-random numbers (nonces). The first method provides greater security but is slower. After this is complete, the IPSec SA is established and the packet flow is passed over the IPSec SA.
Figure 10
IPSec and IKE Operation
For example, in Figure 10, Bob is trying to securely communicate with Alice. Bob sends his data (IP packets) toward Alice. When Bob's internetworking device sees the packet, it checks its security policy and realizes that the packet should be encrypted. The preconfigured security policy also says that Alice's internetworking device will be the other endpoint of the IPSec tunnel. Bob's internetworking device looks to see if it has an existing IPSec SA with Alice's internetworking device. If not, then it negotiates one using IKE. If the two internetworking devices already share an IKE SA, the IPSec SA can be quickly and immediately generated. If they do not share an IKE SA, one must first be created before negotiation of the IPSec SAs. As part of this process, the two internetworking devices exchange authentication credentials, such as digital certificates. A certificate authority that both Bob and Alice's internetworking devices trust must sign the certificates beforehand. When the IKE session becomes active, the two internetworking devices can negotiate the IPSec SA. When the IPSec SA is set up, both internetworking devices will have agreed on an encryption algorithm (for example, 3DES) and an authentication algorithm (for example, SHA), and have a shared session key. Now, Bob's internetworking device can encrypt Bob's IP packet, place it into a new IPSec packet and send it to Alice's internetworking device. When Alice's internetworking device receives the IPSec packet, it looks up the IPSec SA, properly processes and unpacks the original datagram, and forwards it over to Alice. Note that this process is transparent to both Alice and Bob.
Any Internet Protocol (IP) addresses used in this document are not intended to be actual addresses. Any examples, command display output, and figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses in illustrative content is unintentional and coincidental.
© 2007 Cisco Systems, Inc. All rights reserved.1 Support for RSA public/private key pairs for IKE authentication requires the use of an IPSec hardware acceleration module. Models listed as using "Built In" modules do not support RSA public/private key pairs for IKE authentication.
