by Charalampos Patrikakis, Michalis Masikos, and Olga Zouraraki
National Technical University of Athens

The Internet consists of hundreds of millions of computers distributed all around the world. Millions of people use the Internet daily, taking full advantage of the available services at both personal and professional levels. The interconnectivity among computers on which the World Wide Web relies, however, renders its nodes an easy target for malicious users who attempt to exhaust their resources and launch Denial-of-Service (DoS) attacks against them.

A DoS attack is a malicious attempt by a single person or a group of people to cause the victim, site, or node to deny service to its customers. When this attempt derives from a single host of the network, it constitutes a DoS attack. On the other hand, it is also possible that a lot of malicious hosts coordinate to flood the victim with an abundance of attack packets, so that the attack takes place simultaneously from multiple points. This type of attack is called a Distributed DoS, or DDoS attack.

DDoS Attack Description
DoS attacks attempt to exhaust the victim's resources. These resources can be network bandwidth, computing power, or operating system data structures. To launch a DDoS attack, malicious users first build a network of computers that they will use to produce the volume of traffic needed to deny services to computer users. To create this attack network, attackers discover vulnerable sites or hosts on the network. Vulnerable hosts are usually those that are either running no antivirus software or out-of-date antivirus software, or those that have not been properly patched. Vulnerable hosts are then exploited by attackers who use their vulnerability to gain access to these hosts. The next step for the intruder is to install new programs (known as attack tools) on the compromised hosts of the attack network. The hosts that are running these attack tools are known as zombies, and they can carry out any attack under the control of the attacker. Many zombies together form what we call an army.

But how can attackers discover the hosts that will make up the attack network, and how can they install the attack tools on these hosts? Though this preparation stage of the attack is very crucial, discovering vulnerable hosts and installing attack tools on them has become a very easy process. There is no need for the intruder to spend time in creating the attack tools because there are already prepared programs that automatically find vulnerable systems, break into these systems, and then install the necessary programs for the attack. After that, the systems that have been infected by the malicious code look for other vulnerable computers and install on them the same malicious code. Because of that widespread scanning to identify victim systems, it is possible that large attack networks can be built very quickly.

The result of this automated process is the creation of a DDoS attack network that consists of handler (master) and agent (slave, daemon) machines. It can be inferred from this process that another DDos attack takes place while the attack network is being built, because the process itself creates a significant amount of traffic.

Recruiting the Vulnerable Machines
Attackers can use different kinds of techniques (referred to as scanning techniques) in order to find vulnerable machines [1] [2] [3]. The most important follow:

	Random scanning: In this technique, the machine that is infected by the malicious code (such a machine can be either the attacker's machine or the machine of a member of their army, such as a zombie) probes IP addresses randomly from the IP address space and checks their vulnerability. When it finds a vulnerable machine, it breaks into it and tries to infect it, installing on it the same malicious code that is installed on itself. This technique creates significant traffic, because the random scanning causes a large number of compromised hosts to probe and check the same addresses. An advantage (to attackers) of this scanning method is that the malicious code can be spread very quickly because the scans seem to come from everywhere. However, the fast rate at which the malicious code is dispersed cannot last forever. After a small period of time, the spreading rate reduces because the number of the new IP addresses that can be discovered is smaller as time passes. This becomes obvious if we consider the analysis of David Moore and Colleen Shannon [4] on the spread of the Code-Red (CRv2) Worm, which uses random scanning to spread itself.
	Hit-list scanning: Long before attackers start scanning, they collect a list of a large number of potentially vulnerable machines. In their effort to create their army, they begin scanning down the list in order to find vulnerable machines. When they find one, they install on it the malicious code and divide the list in half. Then they give one half to the newly compromised machine, keep the other half, and continue scanning the remaining list. The newly infected host begins scanning down its list, trying to find a vulnerable machine. When it finds one, it implements the same procedure as described previously, and in this way the hit-list scanning takes place simultaneously from an enduringly increasing number of compromised machines. This mechanism ensures that the malicious code is installed on all vulnerable machines contained in the hit list in a short period of time. In addition, the hit list possessed by a new compromised host is constantly reducing because of the partitioning of the list discussed previously. As has been mentioned, the construction of the list is carried out long before the attackers start scanning. For that reason, the attackers can create the list at a very slow rate and for a long period of time. If the attackers conduct a slow scan, it is possible that this activity would not be noticed because a scanning process in a network usually occurs at extremely high frequencies, so a slow scan could occur without anyone realizing that it is a malicious scan. It should also be mentioned that there are public servers such as the Netcraft Survey [2] that can create such hit lists without scanning.
	Topological scanning: Topological scanning uses information contained on the victim machine in order to find new targets. In this technique, an already-compromised host looks for URLs in the disk of a machine that it wants to infect. Then it renders these URLs targets and checks their vulnerability. The fact that these URLs are valid Web servers means that the compromised host scans possible targets directly from the beginning of the scanning phase. For that reason, the accuracy of this technique is extremely good, and its performance seems to be similar to that of hit-list scanning. Hence, topological scanning can create a large army of attackers extremely quickly and in that way can accelerate the propagation of the malicious code.
	Local subnet scanning: This type of scanning acts behind a firewall in an area that is considered to be infected by the malicious scanning program. The compromised host looks for targets in its own local network, using the information that is hidden in “local” addresses. More specifically, a single copy of the scanning program is running behind a firewall and tries to break into all vulnerable machines that would otherwise be protected by the firewall. This mechanism can be used in conjunction with other scanning mechanisms: for example, a compromised host can start its scans with local subnet scanning, looking for vulnerable machines in its local network. As soon as it has probed all local machines, it can continue the probing process by switching to another scanning mechanism in order to scan off-local network machines. In that way, an army with numerous zombies can be constructed at an extremely high speed.
	Permutation scanning: In this type of scanning, all machines share a common pseudorandom permutation list of IP addresses. Such a permutation list can be constructed using any block cipher of 32 bits with a preselected key [3]. If a compromised host has been infected during either the hit-list scanning or local subnet scanning, it starts scanning just after its point in the permutation list and scans through this list in order to find new targets. Otherwise, if it has been infected during permutation scanning, it starts scanning at a random point. Whenever it encounters an already-infected machine, it chooses a new random start point in the permutation list and proceeds from there. A compromised host can recognize an already-infected machine among noninfected ones, because such machines respond differently than other machines. The process of scanning stops when the compromised host encounters sequentially a predefined number of alreadyinfected machines without finding new targets during that period of time. Then, a new permutation key is produced and a new scanning phase begins. This mechanism serves two major purposes: first, it prevents unnecessary reinfections of the same target because when a compromised host recognizes an already-compromised machine, it changes the way it scans according to the process described previously. Second, this mechanism maintains the advantages (to attackers) of random scanning, because the scanning of new targets takes place in a random way. Hence, permutation scanning can be characterized as a coordinated scanning with an extremely good performance, because the randomization mechanism allows high scanning speeds. An improved version of permutation scanning is partitioned permutation scanning. This type of scanning is a combination of permutation and hit-list scanning. In this scenario, the compromised machine has a permutation list, which is cut in half when it finds a new target. Then it keeps one section of the list and gives the other section to the newly compromised machine. When the permutation list that an infected machine possesses reduces below a predefined level, the scanning scheme turns from partitioned permutation scanning into simple permutation scanning.

Propagating the Malicious Code
We can identify three groups of mechanisms for propagating malicious code and building attack networks [4]:

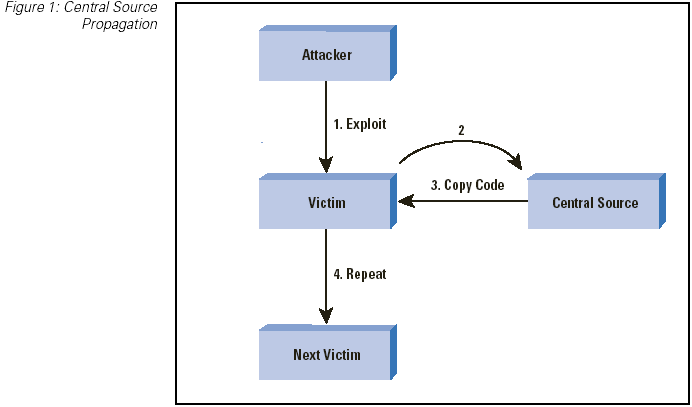

	Central source propagation: In this mechanism, after the discovery of the vulnerable system that will become one of the zombies, instructions are given to a central source so that a copy of the attack toolkit is transferred from a central location to the newly compromised system. After the toolkit is transferred, an automatic installation of the attack tools takes place on this system, controlled by a scripting mechanism. That initiates a new attack cycle, where the newly infected system looks for other vulnerable computers on which it can install the attack toolkit using the same process as the attacker. Like other file-transfer mechanisms, this mechanism commonly uses HTTP, FTP, and remote-procedure call (RPC) protocols. A graphical representation of this mechanism is shown in Figure 1. Figure 1: Central Source Propagation

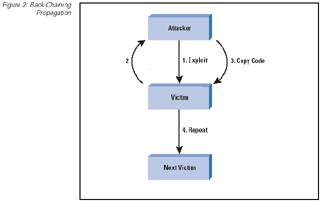

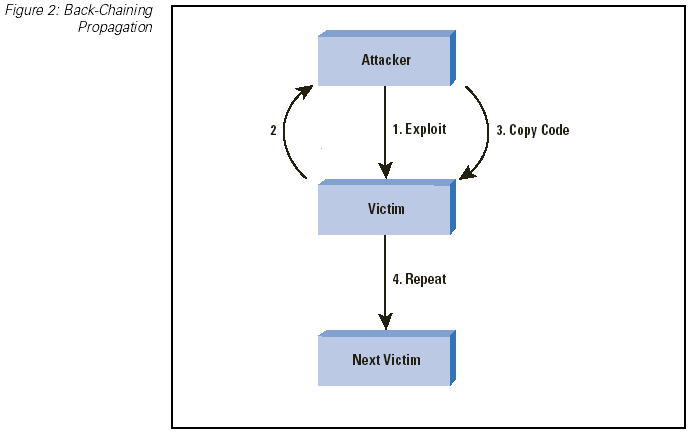

	Back-chaining propagation: In this mechanism, the attack toolkit is transferred to the newly compromised system from the attacker. More specifically, the attack tools that are installed on the attacker include special methods for accepting a connection from the compromised system and sending a file to it that contains the attack tools. This back-channel file copy can be supported by simple port listeners that copy file contents or by full intruder-installed Web servers, both of which use the Trivial File Transfer Protocol (TFTP). Figure 2 presents this mechanism: Figure 2: Back-Chaining Propagation

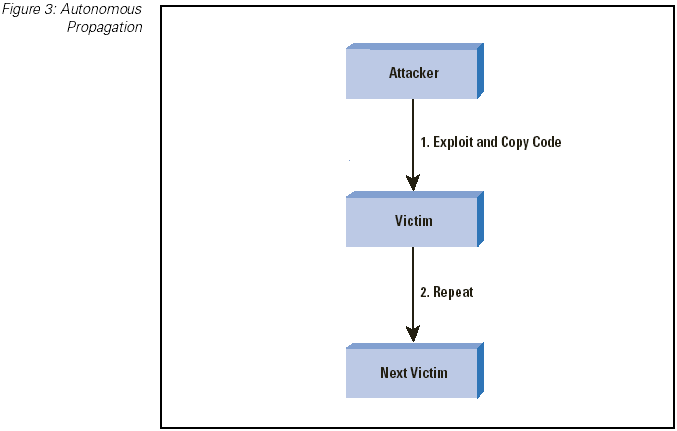

	Autonomous propagation: In this mechanism, the attacking host transfers the attack toolkit to the newly compromised system at the exact moment that it breaks into that system. This mechanism differs from the previously mentioned mechanisms in that the attack tools are planted into the compromised host by the attackers themselves and not by an external file source. Figure 3 shows the autonomous propagation. Figure 3: Autonomous Propagation

After the construction of the attack network, the intruders use handler machines to specify the attack type and the victim's address and wait for the appropriate moment in order to mount the attack. Then, either they remotely command the launch of the chosen attack to agents or the daemons "wake up" simultaneously, as they had been programmed to do. The agent machines in turn begin to send a stream of packets to the victim, thereby flooding the victim's system with useless load and exhausting its resources. In this way, the attackers render the victim machine unavailable to legitimate clients and obtain unlimited access to it, so that they can inflict arbitrary damage. The volume of traffic may be so high that the networks that connect the attacking machines to the victim may also suffer from lower performance. Hence the provision of services over these networks is no longer possible, and in this way their clients are denied those services. Thus, the network that has been burdened by the attack load can be considered as one more victim of the DDos attack.

The whole procedure for carrying out a DDoS attack is mostly automated thanks to various attack tools. According to [5], the existence of the first controllable DDOS tool was reported by the CERT Coordination Center (CERT/CC) in early 1998 and it was called "Fapi." It is a tool that does not provide easy controls for setting up the DDoS network and does not handle networks with more than 10 hosts very well. In mid-1999 Trinoo arrived. Later that year the existence of Tribe Flood Network (TFN) and its upgraded version TFN2K (or TFN2000) was reported. Stacheldraht (German for "barbed wire") evolved out of the latter two tools (Trinoo and TFN). This tool is remarkable because it has full-control features and a Blowfish-encrypted control channel for the attacker. Moreover, in early 2000 it mutated into StacheldrahtV4, and later into Stacheldraht v1.666.

However, the development of attack tools did not stop, and many tools were later introduced, such as Mstream, Omega, Trinity, Derivatives, myServer, and Plague [6]. Dave Dittrich and his partners have provided the most comprehensive analyses of the Trinoo, Tribe Flood Network, Stacheldraht, shaft, and mstream DDoS attack tools [7]. Through this work, a lot of malicious code was captured, important observations were made about DDoS attack tools, and solutions were proposed toward detection and defense.

DDoS Attack Taxonomy
As has been already said, a DDoS attack takes place when many compromised machines infected by the malicious code act simultaneously and are coordinated under the control of a single attacker in order to break into the victim's system, exhaust its resources, and force it to deny service to its customers. There are mainly two kinds of DDoS attacks [10]: typical DDoS attacks and distributed reflector DoS (DRDoS) attacks. The following paragraphs describe these two kinds analytically.

Typical DDoS Attacks
In a typical DDoS attack, the army of the attacker consists of master zombies and slave zombies. The hosts of both categories are compromised machines that have arisen during the scanning process and are infected by malicious code. The attacker coordinates and orders master zombies and they, in turn, coordinate and trigger slave zombies. More specifically, the attacker sends an attack command to master zombies and activates all attack processes on those machines, which are in hibernation, waiting for the appropriate command to wake up and start attacking. Then, master zombies, through those processes, send attack commands to slave zombies, ordering them to mount a DDoS attack against the victim. In that way, the agent machines (slave zombies) begin to send a large volume of packets to the victim, flooding its system with useless load and exhausting its resources. Figure 4 shows this kind of DDoS attack.

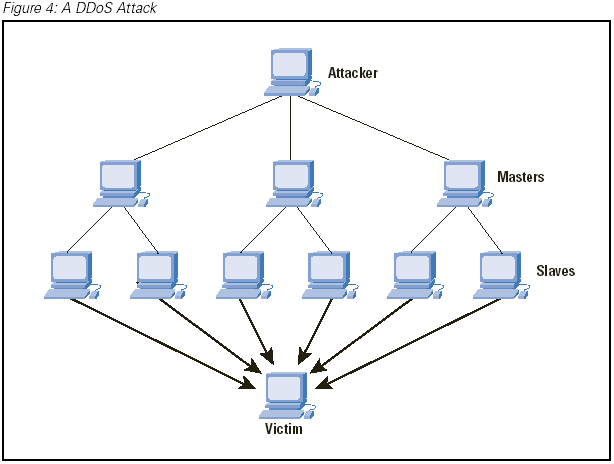

Figure 4: A DDoS Attack



In cases of DDoS attacks, spoofed source IP addresses are used in the packets of the attack traffic. An attacker prefers to use such counterfeit source IP addresses for two major reasons: first, the attackers want to hide the identity of the zombies so that the victim cannot trace the attack back to them. The second reason concerns the performance of the attack. The attackers want to discourage any attempt of the victim to filter out the malicious traffic.

DRDoS Attacks
Unlike typical DDoS attacks, in DRDoS attacks the army of the attacker consists of master zombies, slave zombies, and reflectors [11]. The scenario of this type of attack is the same as that of typical DDoS attacks up to a specific stage. The attackers have control over master zombies, which, in turn, have control over slave zombies. The difference in this type of attack is that slave zombies are led by master zombies to send a stream of packets with the victim's IP address as the source IP address to other uninfected machines (known as reflectors), exhorting these machines to connect with the victim. Then the reflectors send the victim a greater volume of traffic, as a reply to its exhortation for the opening of a new connection, because they believe that the victim was the host that asked for it. Therefore, in DRDoS attacks, the attack is mounted by noncompromised machines, which mount the attack without being aware of the action.

Comparing the two scenarios of DDoS attacks, we should note that a DRDoS attack is more detrimental than a typical DDoS attack. This is because a DRDoS attack has more machines to share the attack, and hence the attack is more distributed. A second reason is that a DRDoS attack creates a greater volume of traffic because of its more distributed nature. Figure 5 graphically depicts a DRDoS attack.

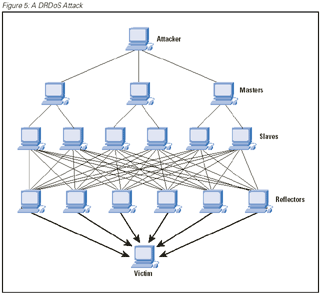

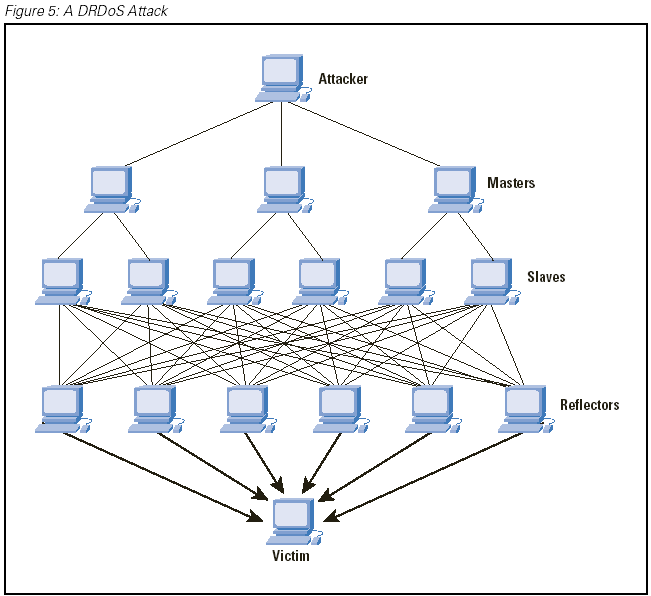

Figure 5: A DRDoS Attack



Well-Known DDoS Attacks
This article would be incomplete without reference to some of the most well-known DDoS attacks. Some of the most famous documented DDoS attacks [12] [13] are summarized in the following:

	Apache2: This attack is mounted against an Apache Web server where the client asks for a service by sending a request with many HTTP headers. However, when an Apache Web server receives many such requests, it cannot confront the load and it crashes.
	ARP Poison: Address Resolution Protocol (ARP) Poison attacks require the attacker to have access to the victim's LAN. The attacker deludes the hosts of a specific LAN by providing them with wrong MAC addresses for hosts with already-known IP addresses. This can be achieved by the attacker through the following process: The network is monitored for "arp who-has" requests. As soon as such a request is received, the malevolent attacker tries to respond as quickly as possible to the questioning host in order to mislead it for the requested address.
	Back: This attack is launched against an apache Web server, which is flooded with requests containing a large number of front-slash ( / ) characters in the URL description. As the server tries to process all these requests, it becomes unable to process other legitimate requests and hence it denies service to its customers.
	CrashIIS: The victim of a CrashIIS attack is commonly a Microsoft Windows NT IIS Web server. The attacker sends the victim a malformed GET request, which can crash the Web server.
	DoSNuke: In this kind of attack, the Microsoft Windows NT victim is inundated with "out-of-band" data (MSG_OOB). The packets being sent by the attacking machines are flagged "urg" because of the MSG_OOB flag. As a result, the target is weighed down, and the victim's machine could display a "blue screen of death."
	Land: In Land attacks, the attacker sends the victim a TCP SYN packet that contains the same IP address as the source and destination addresses. Such a packet completely locks the victim's system.
	Mailbomb: In a Mailbomb attack, the victim's mail queue is flooded by an abundance of messages, causing system failure.
	SYN Flood: A SYN flood attack occurs during the three-way handshake that marks the onset of a TCP connection. In the three-way handshake, a client requests a new connection by sending a TCP SYN packet to a server. After that, the server sends a SYN/ACK packet back to the client and places the connection request in a queue. Finally, the client acknowledges the SYN/ACK packet. If an attack occurs, however, the attacker sends an abundance of TCP SYN packets to the victim, obliging it both to open a lot of TCP connections and to respond to them. Then the attacker does not execute the third step of the three-way handshake that follows, rendering the victim unable to accept any new incoming connections, because its queue is full of half-open TCP connections.
	Ping of Death: In Ping of Death attacks, the attacker creates a packet that contains more than 65,536 bytes, which is the limit that the IP protocol defines. This packet can cause different kinds of damage to the machine that receives it, such as crashing and rebooting.
	Process Table: This attack exploits the feature of some network services to generate a new process each time a new TCP/IP connection is set up. The attacker tries to make as many uncompleted connections to the victim as possible in order to force the victim's system to generate an abundance of processes. Hence, because the number of processes that are running on the system cannot be boundlessly large, the attack renders the victim unable to serve any other request.
	Smurf Attack: In a "smurf" attack, the victim is flooded with Internet Control Message Protocol (ICMP) "echo-reply" packets. The attacker sends numerous ICMP "echo-request" packets to the broadcast address of many subnets. These packets contain the victim's address as the source IP address. Every machine that belongs to any of these subnets responds by sending ICMP "echo-reply" packets to the victim. Smurf attacks are very dangerous, because they are strongly distributed attacks.
	SSH Process Table: Like the Process Table attack, this attack makes hundreds of connections to the victim with the Secure Shell (SSH) Protocol without completing the login process. In this way, the daemon contacted by the SSH on the victim's system is obliged to start so many SSH processes that it is exhausted.
	Syslogd: The Syslogd attack crashes the syslogd program on a Solaris 2.5 server by sending it a message with an invalid source IP address.
	TCP Reset: In TCP Reset attacks, the network is monitored for "tcpconnection" requests to the victim. As soon as such a request is found, the malevolent attacker sends a spoofed TCP RESET packet to the victim and obliges it to terminate the TCP connection.
	Teardrop: While a packet is traveling from the source machine to the destination machine, it may be broken up into smaller fragments, through the process of fragmentation. A Teardrop attack creates a stream of IP fragments with their offset field overloaded. The destination host that tries to reassemble these malformed fragments eventually crashes or reboots.
	UDP Storm: In a User Datagram Protocol (UDP) connection, a character generation ("chargen") service generates a series of characters each time it receives a UDP packet, while an echo service echoes any character it receives. Exploiting these two services, the attacker sends a packet with the source spoofed to be that of the victim to another machine. Then, the echo service of the former machine echoes the data of that packet back to the victim's machine and the victim's machine, in turn, responds in the same way. Hence, a constant stream of useless load is created that burdens the network.

The first DoS attack occurred against Panix, the New York City area's oldest and largest Internet Service Provider (ISP), on September 6, 1996, at about 5:30 p.m. [14]. The attack was against different computers on the provider's network, including mail, news, and Web servers, user "login" machines, and name servers. The Panix attack was a SYN Flood attack deriving from random IP addresses and directed toward server Simple Mail Transfer Protocol (SMTP) ports. More specifically, Panix's computers were flooded by, on average, 150 SYN packets per second (50 per host), so Panix could not respond to legitimate requests [15]. Because the attackers used spoofed source IP addresses intraffic their packets, the addresses could not be traced and malicious could not be filtered. For that reason the attack was not immediately confronted. The solution was to use a special structure, instead of full Transmission Control Block (TCB), to hold half-open connections until the last ACK packet was received. In that way, the listen queue was large enough to keep all the SYN requests before the half-open connection timed out. The timeout, on the other hand, was adjusted to 94 seconds [16]. However, although Panix overcame this attack, the new threat (DoS attacks) made administrators worry.

Problems Caused and Countermeasures
The results of these attacks are disastrous. DDoS attacks have two characteristics: they are both distributed attacks and denial-of-service attacks. Distributed means that they are large-scale attacks having a great impact on the victims. Denial of service means that their goal is to deny the victim's access to a particular resource (service). This is not too difficult because the Internet was not designed with security in mind.

First, available bandwidth is one of the "goods" that attackers try to consume. Flooding the network with useless packets, for example, prevents legitimate ICMP echo packets from traveling over the network. Secondly, attackers try to consume CPU power. By generating several thousands of useless processes on the victim's system, attackers manage to fully occupy memory and process tables. In this way the victim's computer cannot execute any process and the system breaks down. Using this method, the attacker manages to prevent clients from accessing the victim's services and disrupts the current connections. Finally, attackers try to occupy victims' services so that no one else can access them. For example, by leaving TCP connections half open, attackers manage to consume the victim's data structures, and when they do so, no one else can establish a TCP connection with that victim.

The impact of these attacks is catastrophic, especially when victims are not individuals but companies. DDoS attacks prevent victims either from using the Internet, or from being reached by other people. Consequently, when the victim is an ISP, the results of such an attack are far more severe. ISPs' clients will not be served. E-business is also top on the "hit list." Being off line for a few hours could result in the loss of large sums of money for an ISP. Finally, the fact that companies use the Internet more and more for advertising or for providing goods and services increases the severity of such incidents.

Defense Mechanisms
From the beginning, all legitimate users have tried to respond against these threats. University communities and software corporations have proposed several methods against the DDoS threat. Despite the efforts, the solution remains a dream. The attackers manage to discover other weaknesses of the protocols and—what is worse—they exploit the defense mechanisms in order to develop attacks. They discover methods to overcome these mechanisms or they exploit them to generate false alarms and to cause catastrophic consequences.

Many experts have tried to classify the DDoS defense mechanisms in order to clarify them. This classification gives users an overall view of the situation and helps defense-mechanism developers cooperate against the threat. The basic discrimination is between preventive and reactive defense mechanisms.

Preventive Mechanisms
The preventive mechanisms try to eliminate the possibility of DDoS attacks altogether or to enable potential victims to endure the attack without denying services to legitimate clients. With regard to attack prevention, countermeasures can be taken on victims or on zombies. This means modification of the system configuration to eliminate the possibility of accepting a DDoS attack or participating unwillingly in a DDoS attack. Hosts should guard against illegitimate traffic from or toward the machine. By keeping protocols and software up-to-date, we can reduce the weaknesses of a computer. A regular scanning of the machine is also necessary in order to detect any "anomalous" behavior. Examples of system security mechanisms include monitoring access to the computer and applications, and installing security patches, firewall systems, virus scanners, and intrusion detection systems automatically. The modern trend is toward security companies that guard a client's network and inform the client in case of attack detection to take defending measures. Several sensors monitor the network traffic and send information to a server in order to determine the "health" of the network. Securing the computer reduces the possibility of being not only a victim, but also a zombie. Not being a zombie is very important because it wipes out the attacker's army. All these measures can never be 100-percent effective, but they certainly decrease the frequency and strength of DDoS attacks.

Many other measures can be taken in order to reduce the attacker's army or restrict its "power." Studying the attack methods can lead to recognizing loopholes in protocols. For example, administrators could adjust their network gateways in order to filter input and output traffic. The source IP address of output traffic should belong to the subnetwork, whereas the source IP address of input traffic should not. In this way, we can reduce traffic with spoofed IP addresses on the network [28].

Furthermore, over the last few years, several techniques have been proposed to test systems for possible drawbacks, before their shipment to the market. More precisely, by replacing the components of a system with malicious ones we can discover whether the system can survive an attack situation [38]. If the system breaks down, a drawback has been detected and developers must correct it.

On the other hand, DoS prevention mechanisms enable the victim to endure attack attempts without denying service to legitimate clients. Until now, two methods have been proposed for this scenario. The first one refers to policies that increase the privileges of users according to their behavior. When users' identities are verified, then no threat exists. Any illegitimate action from those users can lead to their legal prosecution. The second method is usually too expensive; it involves increasing the effective resources to such a degree that DDoS effects are limited. Most of the time application of such a measure is impossible.

Reactive Mechanisms
The reactive mechanisms (also referred to as Early Warning Systems) try to detect the attack and respond to it immediately. Hence, they restrict the impact of the attack on the victim. Again, there is the danger of characterizing a legitimate connection as an attack. For that reason it is necessary for researchers to be very careful.

The main detection strategies are signature detection, anomaly detection, and hybrid systems. Signature-based methods search for patterns (signatures) in observed network traffic that match known attack signatures from a database. The advantage of these methods is that they can easily and reliably detect known attacks, but they cannot recognize new attacks. Moreover, the signature database must always be kept up-todate in order to retain the reliability of the system.

Anomaly-based methods compare the parameters of the observed network traffic with normal traffic. Hence it is possible for new attacks to be detected. However, in order to prevent a false alarm, the model of "normal traffic" must always be kept updated and the threshold of categorizing an anomaly must be properly adjusted.

Finally, hybrid systems combine both these methods. These systems update their signature database with attacks detected by anomaly detection. Again the danger is great because an attacker can fool the system by characterizing normal traffic as an attack. In that case an Intrusion Detection System (IDS) becomes an attack tool. Thus IDS designers must be very careful because their research can boomerang.

After detecting the attack, the reactive mechanisms respond to it. The relief of the impact of the attack is the primary concern. Some mechanisms react by limiting the accepted traffic rate. This means that legitimate traffic is also blocked. In this case the solution comes from traceback techniques that try to identify the attacker. If attackers are identified, despite their efforts to spoof their address, then it is easy to filter their traffic. Filtering is efficient only if attackers' detection is correct. In any other case filtering can become an attacker's tool.

The University of Washington provides an example of attack detection. Dave Dittrich and his team of 40 people discovered that more than 30 of their systems were zombies exploited by a single attacker [39]. By monitoring network traffic, Dittrich's team located directory and file names uncommon to the Windows operating systems the attacker ran on the network, as well as the port through which all these files were running communications.

Difficulties in Defending
Development of detection and defending tools is very complicated. Designers must think in advance of every possible situation because every weakness can be exploited. Difficulties involve:

	DDoS attacks flood victims with packets. This means that victims cannot contact anyone else in order to ask for help. So it is possible for a network neighbor to be attacked, but nobody would know it and nobody can help. Consequently, any action to react can be taken only if the attack is detected early. But can an attack be detected early? Usually traffic flow increases suddenly and without any warning [34] [35] [36]. For this reason defense mechanisms must react quickly.
	Any attempt of filtering the incoming flow means that legitimate traffic will also be rejected. And if legitimate traffic is rejected, how will applications that wait for information react? On the other hand, if zombies number in the thousands or millions, their traffic will flood the network and consume all the bandwidth. In that case filtering is useless because nothing can travel over the network.
	Attack packets usually have spoofed IP addresses. Hence it is more difficult to trace back to their source. Furthermore, it is possible that intermediate routers and ISPs may not cooperate in this attempt. Sometimes attackers, by spoofing source IP addresses, create counterfeit armies. Packets might derive from thousands of IP addresses, but zombies number only a few tens, for example.
	Defense mechanisms are applied in systems with differences in software and architecture. Also systems are managed by users with different levels of knowledge. Developers must design a platform independent of all these parameters. [37]

Modern Tendencies in Defending Against DDoS Attacks
Until now, developers have not managed to develop a 100-percent-effective defense mechanism. All mechanisms that have been presented either can confront only specific DDoS attacks or are being finally compromised by the attackers. Therefore, developers are currently working on DDoS diversion systems. Honeypots are the best representative of this category (See Figure 6).

Honeypots
There are two basic types of honeypots: low-interaction honeypots and high-interaction honeypots. The first ones refer to emulating services and operating systems. It is easy and safe to implement them. Attackers are not allowed to interact with the basic operating system, but only with specific services. For that reason, this type of honeypot cannot provide detailed informations for attackers' actions and they can easily be detected. However, they can detect communication attempts toward unused IP addresses. In that case an alarm is triggered, warning that someone is trying to compromise or attack the network. But what happens if the attack is not directed against the emulated service?

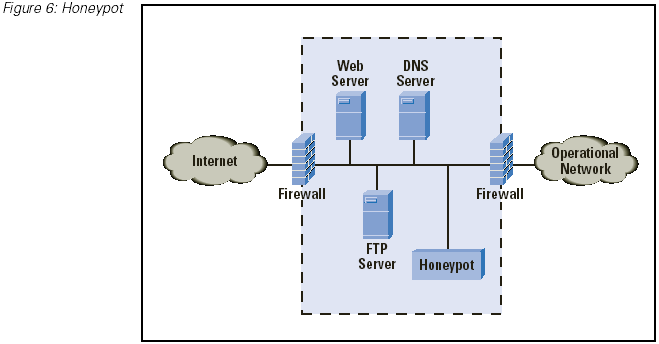

Figure 6: Honeypot



The answer comes from high-interaction honeypots. In [41], Honeynet is proposed. Honeynet is not a software solution that can be installed on a computer but a whole architecture, a network that is created to be attacked. Within this network, every activity is recorded and attackers are being trapped. Encrypted SSH sessions, e-mails, file uploads, and every possible attacker's action is captured. Moreover, a Honeywall gateway allows incoming traffic, but controls outgoing traffic using intrusion prevention technologies. This allows the attacker to interact with Honeynet systems, but prevents the attacker from harming other non-Honeynet systems. By studying the captured traffic, researchers can discover new methods and tools and they can fully understand attackers' tactics. However, Honeynet systems are more complex to install and deploy and the risk is increased as attackers interact with real operating systems and not with emulations. But what would happen if someone did compromise such a system? The consequences could be disastrous.

Route Filter Techniques
Different suggestions for defending against DDoS attacks derive from the Border Gateway Protocol (BGP) community. When routing protocols were designed, developers did not focus on security, but effective routing mechanisms and routing loop avoidance. Early on, attackers started directing their attention towards routers. By gaining access to a router, they could direct the traffic over bottlenecks, view critical data, and modify them. Cryptographic authentication mitigates these threats. Because of neighbor authentication, the routing update comes from a trusted source and there is no possibility that someone can give routers invalid routing information in order to compromise a network. On the other hand, routing filters are necessary for preventing critical routes and subnetworks from being advertised and suspicious routes from being incorporated in routing tables. In that way, attackers do not know the route toward critical servers and suspicious routes are not used.

Two other route filter techniques, blackhole routing and sinkhole routing, can be used when the network is under attack. These techniques try to temporarily mitigate the impact of the attack. The first one directs routing traffic to a null interface, where it is finally dropped. At first glance, it would be perfect to "blackhole" malicious traffic. But is it always possible to isolate malicious from legitimate traffic? If victims know the exact IP address being attacked, then they can ignore traffic originating from these sources. This way, the attack impact is restricted because the victims do not consume CPU time or memory as a consequence of the attack. Only network bandwidth is consumed. However, if the attackers' IP addresses cannot be distinguished and all traffic is blackholed, then legitimate traffic is dropped as well. In that case, this filter technique fails.

Sinkhole routing involves routing suspicious traffic to a valid IP address where it can be analyzed. There, traffic that is found to be malicious is rejected (routed to a null interface); otherwise it is routed to the next hop. A sniffer on the sinkhole router can capture traffic and analyze it. This technique is not as severe as the previous one. The effectiveness of each mechanism depends on the strength of the attack. Specifically, sinkholing cannot react to a severe attack as effectively as blackholing. However, it is a more sophisticated technique, because it is more selective in rejecting traffic.

Filtering malicious traffic seems to be an effective countermeasure against DDoS. The closer to the attacker the filtering is applied, the more effective it is. This is natural, because when traffic is filtered by victims, they "survive," but the ISP's network is already flooded. Consequently, the best solution would be to filter traffic on the source; in other words, filter zombies' traffic.

Until now, three filtering possibilities have been reported concerning criteria for filters. The first one is filtering on the source address. This one would be the best filtering method, if we knew each time who the attacker is. However, this is not always possible because attackers usually use spoofed IP addresses. Moreover, DDoS attacks usually derive from thousands of zombies and this makes it too difficult to discover all the IP addresses that carry out the attack. And even if all these IP addresses are discovered, the implementation of a filter that rejects thousands of IP addresses is practically impossible to deploy.

The second filtering possibility is filtering on the service. This tactic presupposes that we know the attack mechanism. In this case, we can filter traffic toward a specific UDP port or a TCP connection or ICMP messages. But what if the attack is directed toward a very common port or service? Then we must either reject every packet (even if it is legitimate) or suffer the attack.

Finally, there is the possibility of filtering on the destination address. DDoS attacks are usually addressed to a restricted number of victims, so it seems to be easy to reject all traffic toward them. But this means that legitimate traffic is also rejected. In case of a large-scale attack, this should not be a problem because the victims will soon break down and the ISP will not be able to serve anyone. So filtering prevents victims from breaking down by simply keeping them isolated.

Fred Baker and Paul Ferguson developed an technique called Ingress Filtering for mitigating DoS attacks (and, later, DDoS attacks too). After the Panix attack and a few other attacks, Paul Ferguson wrote RFC 2267 [42], which became Best Current Practices (BCP) 38 in RFC 2827 [43]. This RFC presents a method for using ingress traffic filtering against DoS attacks that use forged IP addresses and try to be propagated from "behind" an ISP's aggregation point. This method prevents the attack from forged source addresses, but nothing can be done against an attack from a valid source address. However, in that case, if the attack is detected, it is easy to trace the attacker. Finally, although this solution allows the network to protect itself from other attacks too (for example, spoofed management access to networking equipment), it can also create some problems, for example, with multihoming.

For that reason, RFC 2827 was recently (March 2004) updated by Fred Baker in BCP 84/ RFC 3704 [44]. This RFC describes and evaluates the current ingress filtering mechanisms, examines some implementation matters related to ingress filtering, and presents some solutions to ingress filtering with multihoming. According to this RFC, ingress filtering should be implemented at multiple levels in order to prohibit the use of spoofed addresses and to make attackers more traceable, even if asymmetric/ multihomed networks are presented. However, although Ferguson's work was published a long time ago, service providers in some cases ignore his suggestions.

Hybrid Methods and Guidelines
Currently researchers try to combine the advantages from all the methods stated previously in order to minimize their disadvantages. As a result, several mechanisms that implement two or more of these techniques are proposed for mitigation of the impact of DDoS attacks. The best solution to the DDoS problem seems to be the following: victims must detect that they are under attack as early as possible. Then they must trace back the IP addresses that caused the attack and warn zombies administrators about their actions. In that way, the attack can be confronted effectively.

However, as we saw previously, this is currently impossible. The lack of a 100-percent-effective defending tool imposes the necessity of private alerts. Users must care for their own security. Some basic suggestions follow:

	Prevent installation of distributed attack tools on our systems. This will help to restrict the zombies army. Several tasks also need to be performed. First, keep protocols and operating systems up-to-date. We can prevent system exploitation by eliminating the number of weaknesses of our system.
	Use firewalls in gateways to filter incoming and outgoing traffic. Incoming packets with source IP addresses belonging to the subnetwork and outgoing packets with source IP addresses not belonging to the subnetwork are not logical.
	Deploy IDS systems to detect patterns of attacks.
	Deploy antivirus programs to scan malicious code in our system.

Further Thoughts
The Internet is not stable—it reforms itself rapidly. This means that DDoS countermeasures quickly become obsolete. New services are offered through the Internet, and new attacks are deployed to prevent clients from accessing these services. However, the basic issue is whether DDoS attacks represent a network problem or an individual problem—or both. If attacks are mainly a network problem, a solution could derive from alterations in Internet protocols. Specifically, routers could filter malicious traffic, attackers could not spoof IP addresses, and there would be no drawback in routing protocols. If attacks are mostly the result of individual system weaknesses, the solution could derive from an effective IDS system, from an antivirus, or from an invulnerable firewall. Attackers then could not compromise systems in order to create a "zombies" army. Obviously, it appears that both network and individual hosts constitute the problem. Consequently, countermeasures should be taken from both sides. Because attackers cooperate in order to build the perfect attack methods, legitimate users and security developers should also cooperate against the threat. The solution will arise from combining both network and individual countermeasures.

References
[1] Kevin Tsui, "Tutorial-Virus (Malicious Agents)," University of Calgary, October 2001.

[2] Nicholas Weaver, "Warhol Worms: The Potential for Very Fast Internet Plagues," http://www.iwar.org.uk/comsec/resources/worms/warhol-worm.htm

[3] Nicholas Weaver, U.C. Berkeley BRASS group, "Potential Strategies for High Speed Active Worms: A Worst Case Analysis," February 2002

[4] David Moore and Colleen Shannon, "The Spread of the Code Red Worm (crv2)," July 2001,

[5] "A Chronology of CERT Coordination Center Involvement with Distributed Denial-of-Service Tools,"

[6] "Analyzing Distributed Denial Of Service Tools: The Shaft Case," Sven Dietrich, NASA Goddard Space Flight Center; Neil Long, Oxford University; David Dittrich, University of Washington, http://www.usenix.org/events/lisa2000/full_papers/dietrich/dietrich_html/

[7] http://staff.washington.edu/dittrich

[8] Kevin J. Houle, CERT/CC; George M. Weaver, CERT/CC, in collaboration with: Neil Long, Rob Thomas, "Trends in Denial of Service Attack Technology," V1.0, October 2001.

[9] http://staff.washington.edu/dittrich/misc/stacheldraht.analysis

[10] T. Peng, C. Leckie, and K. Ramamohanarao, "Detecting Distributed Denial of Service Attacks Using Source IP Address Monitoring," The University of Melbourne, Australia, 2003.

[11] Steve Gibson, "Distributed Reflection Denial of Service Description and Analysis of a Potent, Increasingly Prevalent, and Worrisome Internet Attack," February 2002.

[13] Yanet Manzano, "Tracing the Development of Denial of Service Attacks: A Corporate Analogy," 2003, http://www.acm.org/crossroads/xrds10-1/tracingDOS.html

[15] http://cypherpunks.venona.com/date/1996/09/msg01055.html

[16] http://cypherpunks.venona.com/date/1996/09/msg01061.html

[17] Larry Rogers, "What Is a Distributed Denial of Service (DDoS) Attack and What Can I Do About It?" February 2004.

[18] Alefiya Hussain, John Heidemann, and Christos Papadopoulo, "A Framework for Classifying Denial of Service Attacks," 25 February 2003.

[20] CIS 659 "Introduction to Network Security – Fall 2003," http://www.cis.udel.edu/~sunshine/F03/CIS659/class15.pdf

[21] Miguel Vargas Martin, School of Computer Science, Carleton University, "Overview of Worms and Defence Strategies," October 2003.

[22] "Computer Security," Testimony of Richard D. Pethia, Director, CERT Centers Software Engineering Institute, Carnegie Mellon University, March 2000,

[23] Jelena Mirkovic, Janice Martin, and Peter Reiher, UCLA, "A Taxonomy of DDoS Attacks and DDoS Defense Mechanisms."

[24] Distributed Denial of Service Tools, http://www.cert.org/incident_notes/IN-99-07.html

[25] Barbara Fraser, Lawrence Rogers, and Linda Pesante, "Was the Melissa Virus So Different?" The Internet Protocol Journal, Volume 2, No. 2, June 1999.

[26] http://news.bbc.co.uk/1/hi/sci/tech/635444.stm

[27] http://www.nta-monitor.com/newrisks/feb2000/yahoo.htm

[28] http://www.cert.org/advisories/CA-1996-21.html

[29] S. Axelsson, "Intrusion Detection Systems: A Survey and Taxonomy," Technical Report 99-15, Department of Computer Engineering, Chalmers University, March 2000.

[30] J. Shapiro and N. Hardy, "EROS: A principle-driven Operating System from the Ground Up," IEEE Software, pp. 26–33, January/February 2002.

[31] A. Garg and A. L. Narasimha Reddy, "Mitigating Denial of Service Attacks Using QoS Regulation," Texas A & M University Tech report, TAMU-ECE-2001-06.

[32] Y. L. Zheng and J. Leiwo, "A method to implement a Denial of Service Protection Base," Information Security and Privacy, Volume 1270 of Lecture Notes in Computer Science (LNCS), pp. 90–101, 1997.

[33] CERT on Home Network Security: http://www.cert.org/tech_tips/home_networks.html

[34] CERT on SMURF Attacks: http://www.cert.org/advisories/CA-1998-01.html

[35] CERT on TCP SYN Flooding Attacks: http://www.cert.org/advisories/CA-1996-21.html

[36] CERT TRIN00 Report: http://www.cert.org/incident_notes/IN-99-07.html#trinoo

[38] Charalampos Patrikakis, Thomas Kalamaris, Vaios Kakavas, "Performing Integrated System Tests Using Malicious Component Insertion," Electronic Notes in Theoretical Computer Science, Volume 82 No. 6 (2003).

[39] http://www.paypal.com/html/computerworld-011402.html

[40] Ho Chung, "An Evaluation on Defensive Measures against Denial-of-Service Attacks," Fall 2002.

[41] Nathalie Weiler, "Honeypots for Distributed Denial of Service Attacks,"

[42] P. Ferguson and D. Senie, "Network Ingress Filtering: Defeating Denial of Service Attacks which employ IP Source Address Spoofing," RFC 2267, January 1998.

[43] P. Ferguson and D. Senie, "Network Ingress Filtering: Defeating Denial of Service Attacks which employ IP Source Address Spoofing,"RFC 2827, May 2000.

[44] F. Baker and P. Savola, "Ingress Filtering for Multihomed Networks," RFC 3704, March 2004.

[45] Taxonomies of Distributed Denial of Service Networks, Attacks, Tools, and Countermeasures: http://www.ee.princeton.edu/~rblee/DDoS%20Survey%20Paper_v7final.doc

[46] Lance Spitzner, "Honeypots Definitions and Value of Honeypots," May 2003.

[47] How to Get Rid of Denial of Service Attacks: http://www.bgpexpert.com/antidos.php

[48] Proposed Solutions to DDoS Information, March 2001: http://www.cs.virginia.edu/~survive/ddos/ddos_solutions.html

[49] Dennis Fisher, "Thwarting the Zombies," March 2003: http://www.eweek.com/article2/0,3959,985389,00.asp

[50] Merike Kaeo, "Route to Security," March 2004, http://infosecuritymag.techtarget.com/ss/0,295796,sid6_iss346_art668,00.html

[51] "Report to the President's Commission on Critical Infrastructure Protection," James Ellis, David Fisher, Thomas Longstaff, Linda Pesante, and Richard Pethia, January 1997,

[52] "Cisco Quality of Service and DDOS, Engineering Issues for Adaptive Defense Network," MITRE, 7/25/2001.

[53] "Denial of Service Attacks," CERT Coordination Center, June 4, 2001, http://www.cert.org/tech_tips/denial_of_service.html

[54] Tom Chen,The Internet Protocol Journal, Volume 6, No. 3, September 2003.

CHARALAMPOS Z. PATRIKAKIS holds a Dipl.-Ing. and a Ph.D. degree from the Electrical Engineering and Computer Science Department of the National Technical University of Athens (NTUA). He is currently a senior research associate of the Telecommunications Labor-atory of NTUA. He has participated in several European Union projects (ESPRIT, RACE, ACTS, IST). His main interests are in the area of IP service design and implementation, multicasting in IP networks, IP transport protocols, and media streaming over IP networks. He is a member of IEEE, a member of the Greek Computer Society, a certified trainer by the National Accreditation Centre of Vocational Training Structures and Accompanying Support Services, and a member of the Technical Chamber of Greece. He can be reached at: bpatr@telecom.ntua.gr

MICHALIS MASIKOS holds a Dipl.-Ing. degree from the Electrical Engineering and Computer Science Department of the National Technical University of Athens (NTUA). He is currently a research associate of the Telecommunications Laboratory of NTUA. His interests are in the fields of network security, network simulation, and analysis. He can be reached at: mmasik@telecom.ntua.gr

OLGA ZOURARAKI holds a Dipl.-Ing. degree from the Electrical Engineering and Computer Science Department of the National Technical University of Athens (NTUA). She is currently a research associate of the Telecommunications Laboratory of NTUA. Her interests are in the fields of network security, Internet application design, and implementation. She can be reached at: ozour@telecom.ntua.gr
