GainMaker® and GS7000 Nodes may be equipped with 1310 nm, Coarse Wave Division Multiplexing (CWDM), or Dense Wave Division Multiplexing (DWDM) analog reverse optical transmitters to facilitate reverse communications from node to headend or hub site. These reverse optical transmitters are now thermally compensated for improved performance over temperature.
The CWDM reverse optical transmitter is offered in a choice of 8 wavelengths from 1470 to 1610 nm. Up to 8 CWDM reverse optical transmitters can share a common return fiber when used with accompanying multiplexing and demultiplexing passive optics.
The DWDM reverse optical transmitter is offered in a choice of 40 wavelengths from 1530.33 to 1560.61 nm. Multiple DWDM reverse optical transmitters can share a common return fiber when used with accompanying multiplexing and demultiplexing passive optics.

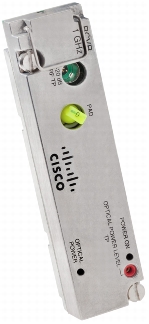

Figure 1. GainMaker & 694x Reverse TX
All of these reverse optical transmitters incorporate distributed feedback (DFB) lasers, which are best suited for high-capacity reverse traffic. They are available in both standard and high gain versions, in order to allow flexibility in reverse path design. The high gain versions are typically used in the GS7000 segmentable nodes. The standard gain versions are typically used in the GainMaker nodes. All optical transmitters used in the GS7000 Node have a new high profile module cover that includes both a self-contained fiber pigtail storage area and an integrated pull ring for easier module installation and removal.
Figure 2. GS7000 Reverse TX
The reverse optical transmitters specified in this data sheet include both a Power On LED and an Optical Power Alert LED, enabling quick visual confirmation of operational status. A DC test point that is scaled to the optical output power is also included.
Features
• Compact modular design for simple installation and removal
• Thermally Compensated for improved performance over temperature
• Provisioned with network monitoring capability (HMS or DOCSIS Transponder required)

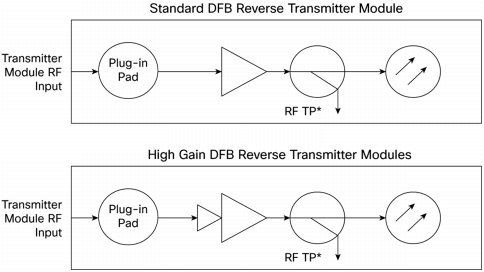

Block Diagrams
*Note concerning the transmitter module RF test point (TP):
It is important to understand the RF level relationship between the RF test point and the transmitter module RF input. With a 0 dB pad installed in the plug-in pad location:
For all thermally compensated transmitters (whether standard or high gain), add 20 dB to the level measured at the test point to determine the module RF input level (the test point is -20 dB relative to the module input).
DFB Reverse Transmitter Module Specifications
Units
Notes
Wavelength - 1310nm Tx
nm
1310
Wavelengths - CWDM Txs
nm
1470, 1490, 1510, 1530
1550, 1570, 1590, 1610
Wavelengths - DWDM Txs
nm
1530.33 to 1560.61
RF Pass Band
MHz
5 - 220
Frequency Response
dB
±0.5 (5-65)
±0.75 (5-220)
1
RF Stability over temperature range (typical)
dB
2 dB
Input Return Loss
dB
16
Optical Output Test Point (± 10%)
V DC
1 V/mw
Optical Output Power (1310 & CWDM)
mW
dBm
2
3
Optical Output Power (DWDM)
mW
dBm
5
7
Std Gain Tx
High Gain Tx
Single CW carrier RF input level for 100% OMI
dBmV
55
33
2
Noise Power Ratio (NPR) Performance
See plot
See plot
RF Test Point -relative to transmitter RF input (± 1 dB)
dB
-20
-20
3
Notes:
1. Frequency response for transmitter (Tx) module only. Does not include the frequency response contribution of an optical receiver.
2. This is the RF level that produces 100% composite Optical Modulation Index (OMI) with a 0 dB Tx input pad at room temperature. This is used for reference purposes only and is NOT the recommended RF drive level. Consult with Cisco Sales Engineering group in order to determine the appropriate RF drive level for a particular application.
3. The RF level measured at the Tx module's RF test point is relative to the Tx module RF input as specified, with a 0 dB input pad installed.
Electrical
Units
Component DC Power Consumption
@ +24 V DC *
@ -6 V DC
Standard Gain DFB - 1310 nm Reverse Transmitter
Amps
.08
.09
High Gain DFB - 1310 nm Reverse Transmitter
Amps
.11
.09
Standard Gain DFB - CWDM Reverse Transmitters
Amps
.08
.09
High Gain DFB - CWDM Reverse Transmitters
Amps
.11
.09
High Gain DFB - DWDM Reverse Transmitters
Amps
.22
.10
Environmental
Units
Operating Temperature Range (outdoor ambient)
°F
°C
-40 to +140
-40 to +60
Mechanical
Physical Dimensions
Units
Length
Width
Height
Weight
GainMaker
in./lbs.
5.8
1.5
1.2
0.5
cm./kg.
14.7
3.8
3.1
0.2
GS7000
in./lbs.
5.8
1.5
3.8
0.8
cm./kg.
14.7
3.8
9.6
0.4
*Note: Heater can draw an additional .2A from +24 V DC when laser case below 0°C
1310 nm Link Specifications

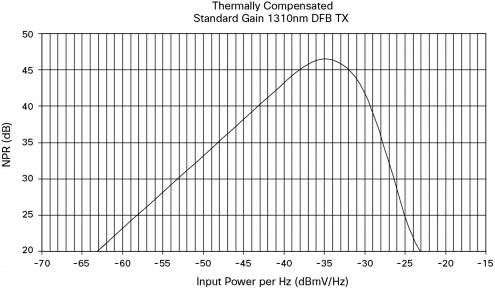

Standard Gain DFB Transmitter
Typical Noise Power Ratio (NPR) performance over temperature -with 7 dB Optic Link (15 km glass, plus passive loss)

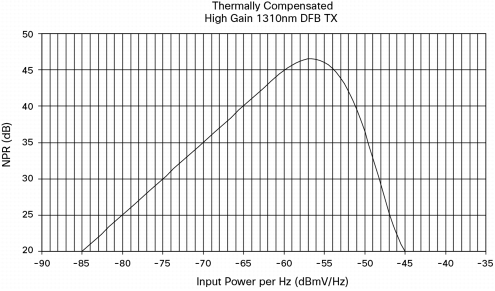

High Gain DFB Transmitter
Typical Noise Power Ratio (NPR) performance over temperature -with 7 dB Optic Link (15 km glass, plus passive loss)
Note: NPR performance with noise loading from 5-42 MHz
CWDM and 1550 nm Link Specifications

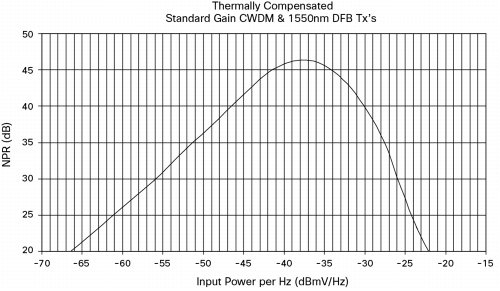

Standard Gain DFB Transmitter
Typical Noise Power Ratio (NPR) performance over temperature -with 7 dB Optic Link (15 km glass, plus passive loss)

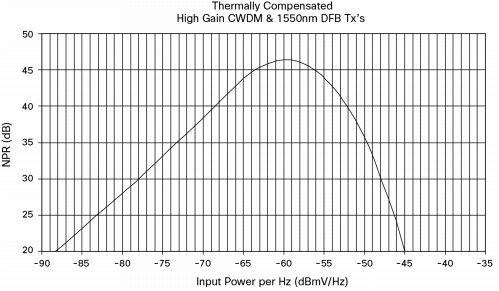

High Gain DFB Transmitter
Typical Noise Power Ratio (NPR) performance over temperature -with 7 dB Optic Link (15 km glass, plus passive loss)
Note: NPR performance with noise loading from 5-42 MHz - performance shown is for single transmitter
DWDM Link Specifications

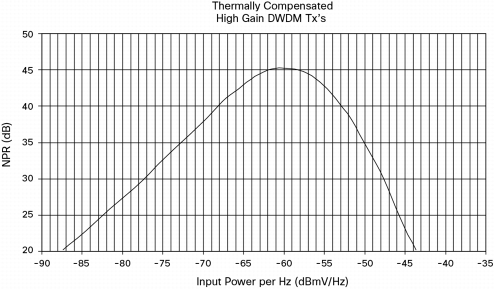

High Gain DFB Transmitter
Typical Noise Power Ratio (NPR) performance over temperature -with 11 dB Optic Link (15 km glass, plus passive loss)
Note: NPR performance with noise loading from 5-42 MHz - performance shown is for single transmitter
Link Specifications, Continued
1310 & CWDM Transmitters
DWDM Transmitters
NPR `Link Loss Correction Factor' (dB)
Link Loss (dB)
Link Loss (dB)
Temperature Compensated DFB TX's (Std and High Gain)
1
5
+2
2
6
+2
3
7
+2
4
8
+1.5
5
9
+1
6
10
+1
7
11
0
8
12
-1
9
13
-2
10
14
-3
11
15
-4.5
12
16
-6
13
17
-7
14
18
-9
15
19
-11
16
20
-12
17
-
-14
18
-
-16
19
-
-18
20
-
-20
Using the NPR Link Loss Correction Factor (applies only to transmitters on this data sheet).
The NPR performance plots contained in this document depict the NPR performance on a reference 7 dB fiber optic link (11 dB for DWDM).
With other link losses, both the:
• NPR dynamic range for a given minimum NPR (C/N) performance
• NPR value for a given transmitter RF input level
will vary from that shown on the reference 7 dB link plots.
To determine an NPR dynamic range for a different link loss, add (or subtract) the correction factor associated with the desired link loss to (or from) the dynamic range shown on the reference 7 dB link NPR plot. Note that the associated increase (or decrease) in dynamic range affects only the left side of the NPR curve (minimum RF input side) since that is the portion of the curve affected by changes to the traditional noise sources associated with the optical link.
To determine an NPR value for a different link loss, add (or subtract) the correction factor associated with the desired link loss to (or from) the NPR value shown on the 7 dB link NPR plot for a given RF input level. Again, only the NPR values on the left side of the NPR curve (pre-peak values) are to be adjusted. The NPR values and slope associated with the right side of the NPR curve (post peak values) are primarily due to laser clipping at high RF input levels, and therefore do not vary appreciably with link loss.
Ordering Information
The analog reverse optical transmitters for Cisco nodes are applicable for a wide variety of station configurations. Please consult with Sales and Applications Engineering to determine the most suitable reverse transmitter configuration for your particular application.
For Use in GainMaker Nodes - Standard Gain
Description
Part Number on Module*
Part Number for Ordering*
All Listed Below Are Thermally Compensated Transmitters
1310 nm DFB Optical Transmitter - Standard Gain, with SC/APC connector
4013903.1310
590934
1310 nm DFB Optical Transmitter - Standard Gain, with SC/UPC connector
4013904.1310
590935
1310 nm DFB Optical Transmitter - Standard Gain, with FC/APC connector
4013905.1310
590932
1470 nm CWDM DFB Optical Transmitter - Standard Gain with SC/APC connector
4013903.1470
4006971
1490 nm CWDM DFB Optical Transmitter - Standard Gain with SC/APC connector
4013903.1490
4006972
1510 nm CWDM DFB Optical Transmitter - Standard Gain with SC/APC connector
4013903.1510
4006973
1530 nm CWDM DFB Optical Transmitter - Standard Gain with SC/APC connector
4013903.1530
4006974
1550 nm CWDM DFB Optical Transmitter - Standard Gain with SC/APC connector
4013903.1550
4006975
1570 nm CWDM DFB Optical Transmitter - Standard Gain with SC/APC connector
4013903.1570
4006976
1590 nm CWDM DFB Optical Transmitter - Standard Gain with SC/APC connector
4013903.1590
4006977
1610 nm CWDM DFB Optical Transmitter - Standard Gain with SC/APC connector
4013903.1610
4006978
1470 nm CWDM DFB Optical Transmitter - Standard Gain with SC/UPC connector
4013904.1470
4006979
1490 nm CWDM DFB Optical Transmitter - Standard Gain with SC/UPC connector
4013904.1490
4006980
1510 nm CWDM DFB Optical Transmitter - Standard Gain with SC/UPC connector
4013904.1510
4006981
1530 nm CWDM DFB Optical Transmitter - Standard Gain with SC/UPC connector
4013904.1530
4006982
1550 nm CWDM DFB Optical Transmitter - Standard Gain with SC/UPC connector
4013904.1550
4006983
1570 nm CWDM DFB Optical Transmitter - Standard Gain with SC/UPC connector
4013904.1570
4006984
1590 nm CWDM DFB Optical Transmitter - Standard Gain with SC/UPC connector
4013904.1590
4006985
1610 nm CWDM DFB Optical Transmitter - Standard Gain with SC/UPC connector
4013904.1610
4006986
1470 nm CWDM DFB Optical Transmitter - Standard Gain with FC/APC connector
4013905.1470
4006987
1490 nm CWDM DFB Optical Transmitter - Standard Gain with FC/APC connector
4013905.1490
4006988
1510 nm CWDM DFB Optical Transmitter - Standard Gain with FC/APC connector
4013905.1510
4006989
1530 nm CWDM DFB Optical Transmitter - Standard Gain with FC/APC connector
4013905.1530
4006990
1550 nm CWDM DFB Optical Transmitter - Standard Gain with FC/APC connector
4013905.1550
4006991
1570 nm CWDM DFB Optical Transmitter - Standard Gain with FC/APC connector
4013905.1570
4006992
1590 nm CWDM DFB Optical Transmitter - Standard Gain with FC/APC connector
4013905.1590
4006993
1610 nm CWDM DFB Optical Transmitter - Standard Gain with FC/APC connector
4013905.1610
4006994
* Part Number for Ordering is for a Transmitter Module packaged in a box. Part Number on Module is the Part Number that appears on the module itself.
Ordering Information, Continued
For Use in GainMaker Reverse Segmentable Nodes - High Gain
Description
Part Number on Module*
Part Number for Ordering*
All Listed Below Are Thermally Compensated Transmitters
1310 nm DFB Optical Transmitter - High Gain, with SC/APC connector
4013906.1310
590938
1310 nm DFB Optical Transmitter - High Gain, with SC/UPC connector
4013907.1310
590939
1310 nm DFB Optical Transmitter - High Gain, with FC/APC connector
4013896.1310
590936
1470 nm CWDM DFB Optical Transmitter - High Gain with SC/APC connector
4013906.1470
4007003
1490 nm CWDM DFB Optical Transmitter - High Gain with SC/APC connector
4013906.1490
4007004
1510 nm CWDM DFB Optical Transmitter - High Gain with SC/APC connector
4013906.1510
4007005
1530 nm CWDM DFB Optical Transmitter - High Gain with SC/APC connector
4013906.1530
4007006
1550 nm CWDM DFB Optical Transmitter - High Gain with SC/APC connector
4013906.1550
4007007
1570 nm CWDM DFB Optical Transmitter - High Gain with SC/APC connector
4013906.1570
4007008
1590 nm CWDM DFB Optical Transmitter - High Gain with SC/APC connector
4013906.1590
4007009
1610 nm CWDM DFB Optical Transmitter - High Gain with SC/APC connector
4013906.1610
4007010
1470 nm CWDM DFB Optical Transmitter - High Gain with SC/UPC connector
4013907.1470
4007011
1490 nm CWDM DFB Optical Transmitter - High Gain with SC/UPC connector
4013907.1490
4007012
1510 nm CWDM DFB Optical Transmitter - High Gain with SC/UPC connector
4013907.1510
4007013
1530 nm CWDM DFB Optical Transmitter - High Gain with SC/UPC connector
4013907.1530
4007014
1550 nm CWDM DFB Optical Transmitter - High Gain with SC/UPC connector
4013907.1550
4007015
1570 nm CWDM DFB Optical Transmitter - High Gain with SC/UPC connector
4013907.1570
4007016
1590 nm CWDM DFB Optical Transmitter - High Gain with SC/UPC connector
4013907.1590
4007017
1610 nm CWDM DFB Optical Transmitter - High Gain with SC/UPC connector
4013907.1610
4007018
1470 nm CWDM DFB Optical Transmitter - High Gain with FC/APC connector
4013908.1470
4007019
1490 nm CWDM DFB Optical Transmitter - High Gain with FC/APC connector
4013908.1490
4007020
1510 nm CWDM DFB Optical Transmitter - High Gain with FC/APC connector
4013908.1510
4007021
1530 nm CWDM DFB Optical Transmitter - High Gain with FC/APC connector
4013908.1530
4007022
1550 nm CWDM DFB Optical Transmitter - High Gain with FC/APC connector
4013908.1550
4007023
1570 nm CWDM DFB Optical Transmitter - High Gain with FC/APC connector
4013908.1570
4007024
1590 nm CWDM DFB Optical Transmitter - High Gain with FC/APC connector
4013908.1590
4007025
1610 nm CWDM DFB Optical Transmitter - High Gain with FC/APC connector
4013908.1610
4007026
* Part Number for Ordering is for a Transmitter Module packaged in a box. Part Number on Module is the Part Number that appears on the module itself.
Ordering Information, Continued
For Use in GainMaker Reverse Segmentable Nodes - High Gain
Description
All Listed Below Are Thermally Compensated Transmitters
Part Number
DWDM, ITU Grid, CH. 20, 1561.42 nm, Analog, SC/APC
4023375.20
DWDM, ITU Grid, CH. 21, 1560.61 nm, Analog, SC/APC
4023375.21
DWDM, ITU Grid, CH. 22, 1559.79 nm, Analog, SC/APC
4023375.22
DWDM, ITU Grid, CH. 23, 1558.98 nm, Analog, SC/APC
4023375.23
DWDM, ITU Grid, CH. 24, 1558.17 nm, Analog, SC/APC
4023375.24
DWDM, ITU Grid, CH. 25, 1557.36 nm, Analog, SC/APC
4023375.25
DWDM, ITU Grid, CH. 26, 1556.55 nm, Analog, SC/APC
4023375.26
DWDM, ITU Grid, CH. 27, 1555.75 nm, Analog, SC/APC
4023375.27
DWDM, ITU Grid, CH. 28, 1554.94 nm, Analog, SC/APC
4023375.28
DWDM, ITU Grid, CH. 29, 1554.13 nm, Analog, SC/APC
4023375.29
DWDM, ITU Grid, CH. 30, 1553.33 nm, Analog, SC/APC
4023375.30
DWDM, ITU Grid, CH. 31, 1552.52 nm, Analog, SC/APC
4023375.31
DWDM, ITU Grid, CH. 32, 1551.72 nm, Analog, SC/APC
4023375.32
DWDM, ITU Grid, CH. 33, 1550.92 nm, Analog, SC/APC
4023375.33
DWDM, ITU Grid, CH. 34, 1550.12 nm, Analog, SC/APC
4023375.34
DWDM, ITU Grid, CH. 35, 1549.32 nm, Analog, SC/APC
4023375.35
DWDM, ITU Grid, CH. 36, 1548.51 nm, Analog, SC/APC
4023375.36
DWDM, ITU Grid, CH. 37, 1547.72 nm, Analog, SC/APC
4023375.37
DWDM, ITU Grid, CH. 38, 1546.92 nm, Analog, SC/APC
4023375.38
DWDM, ITU Grid, CH. 39, 1546.12 nm, Analog, SC/APC
4023375.39
DWDM, ITU Grid, CH. 40, 1545.32 nm, Analog, SC/APC
4023375.40
DWDM, ITU Grid, CH. 41, 1544.53 nm, Analog, SC/APC
4023375.41
DWDM, ITU Grid, CH. 42, 1543.73 nm, Analog, SC/APC
4023375.42
DWDM, ITU Grid, CH. 43, 1542.94 nm, Analog, SC/APC
4023375.43
DWDM, ITU Grid, CH. 44, 1542.14 nm, Analog, SC/APC
4023375.44
DWDM, ITU Grid, CH. 45, 1541.35 nm, Analog, SC/APC
4023375.45
DWDM, ITU Grid, CH. 46, 1540.56 nm, Analog, SC/APC
4023375.46
DWDM, ITU Grid, CH. 47, 1539.77 nm, Analog, SC/APC
4023375.47
DWDM, ITU Grid, CH. 48, 1538.98 nm, Analog, SC/APC
4023375.48
DWDM, ITU Grid, CH. 49, 1538.19 nm, Analog, SC/APC
4023375.49
DWDM, ITU Grid, CH. 50, 1537.40 nm, Analog, SC/APC
4023375.50
DWDM, ITU Grid, CH. 51, 1536.61 nm, Analog, SC/APC
4023375.51
DWDM, ITU Grid, CH. 52, 1535.82 nm, Analog, SC/APC
4023375.52
DWDM, ITU Grid, CH. 53, 1535.04 nm, Analog, SC/APC
4023375.53
DWDM, ITU Grid, CH. 54, 1534.25 nm, Analog, SC/APC
4023375.54
DWDM, ITU Grid, CH. 55, 1533.47 nm, Analog, SC/APC
4023375.55
DWDM, ITU Grid, CH. 56, 1532.68 nm, Analog, SC/APC
4023375.56
DWDM, ITU Grid, CH. 57, 1531.90 nm, Analog, SC/APC
4023375.57
DWDM, ITU Grid, CH. 58, 1531.12 nm, Analog, SC/APC
4023375.58
DWDM, ITU Grid, CH. 59, 1530.33 nm, Analog, SC/APC
4023375.59
Ordering Information, Continued
For Use in GS7000 Node
Description
Part Number on Module*
Part Number for Ordering*
All Listed Below Are Thermally Compensated Transmitters
1310 nm DFB Optical Transmitter - High Gain, with SC/APC connector
4013900.1310
4011952
1310 nm DFB Optical Transmitter - High Gain, with SC/UPC connector
4013901.1310
4011953
1310 nm DFB Optical Transmitter - High Gain, with FC/APC connector
4013902.1310
4011954
1470 nm CWDM DFB Optical Transmitter - High Gain with SC/APC connector
4013900.1470
4011955
1490 nm CWDM DFB Optical Transmitter - High Gain with SC/APC connector
4013900.1490
4011956
1510 nm CWDM DFB Optical Transmitter - High Gain with SC/APC connector
4013900.1510
4011957
1530 nm CWDM DFB Optical Transmitter - High Gain with SC/APC connector
4013900.1530
4011961
1550 nm CWDM DFB Optical Transmitter - High Gain with SC/APC connector
4013900.1550
4011965
1570 nm CWDM DFB Optical Transmitter - High Gain with SC/APC connector
4013900.1570
4011966
1590 nm CWDM DFB Optical Transmitter - High Gain with SC/APC connector
4013900.1590
4011967
1610 nm CWDM DFB Optical Transmitter - High Gain with SC/APC connector
4013900.1610
4011968
1470 nm CWDM DFB Optical Transmitter - High Gain with SC/UPC connector
4013901.1470
4011969
1490 nm CWDM DFB Optical Transmitter - High Gain with SC/UPC connector
4013901.1490
4011970
1510 nm CWDM DFB Optical Transmitter - High Gain with SC/UPC connector
4013901.1510
4011974
1530 nm CWDM DFB Optical Transmitter - High Gain with SC/UPC connector
4013901.1530
4011975
1550 nm CWDM DFB Optical Transmitter - High Gain with SC/UPC connector
4013901.1550
4011976
1570 nm CWDM DFB Optical Transmitter - High Gain with SC/UPC connector
4013901.1570
4011977
1590 nm CWDM DFB Optical Transmitter - High Gain with SC/UPC connector
4013901.1590
4013218
1610 nm CWDM DFB Optical Transmitter - High Gain with SC/UPC connector
4013901.1610
4013299
1470 nm CWDM DFB Optical Transmitter - High Gain with FC/APC connector
4013902.1470
4013542
1490 nm CWDM DFB Optical Transmitter - High Gain with FC/APC connector
4013902.1490
4013543
1510 nm CWDM DFB Optical Transmitter - High Gain with FC/APC connector
4013902.1510
4013544
1530 nm CWDM DFB Optical Transmitter - High Gain with FC/APC connector
4013902.1530
4013545
1550 nm CWDM DFB Optical Transmitter - High Gain with FC/APC connector
4013902.1550
4013546
1570 nm CWDM DFB Optical Transmitter - High Gain with FC/APC connector
4013902.1570
4013547
1590 nm CWDM DFB Optical Transmitter - High Gain with FC/APC connector
4013902.1590
4013548
1610 nm CWDM DFB Optical Transmitter - High Gain with FC/APC connector
4013902.1610
4013549
* Part Number for Ordering is for a Transmitter Module packaged in a box. Part Number on Module is the Part Number that appears on the module itself.
Ordering Information, Continued
For Use in GS7000 Node
Description
All Listed Below Are Thermally Compensated Transmitters
Part Number
DWDM, ITU Grid, CH. 19, 1562.23 nm, Analog, SC/APC
4022938.19
DWDM, ITU Grid, CH. 20, 1561.42 nm, Analog, SC/APC
4022938.20
DWDM, ITU Grid, CH. 21, 1560.61 nm, Analog, SC/APC
4022938.21
DWDM, ITU Grid, CH. 22, 1559.79 nm, Analog, SC/APC
4022938.22
DWDM, ITU Grid, CH. 23, 1558.98 nm, Analog, SC/APC
4022938.23
DWDM, ITU Grid, CH. 24, 1558.17 nm, Analog, SC/APC
4022938.24
DWDM, ITU Grid, CH. 25, 1557.36 nm, Analog, SC/APC
4022938.25
DWDM, ITU Grid, CH. 26, 1556.55 nm, Analog, SC/APC
4022938.26
DWDM, ITU Grid, CH. 27, 1555.75 nm, Analog, SC/APC
4022938.27
DWDM, ITU Grid, CH. 28, 1554.94 nm, Analog, SC/APC
4022938.28
DWDM, ITU Grid, CH. 29, 1554.13 nm, Analog, SC/APC
4022938.29
DWDM, ITU Grid, CH. 30, 1553.33 nm, Analog, SC/APC
4022938.30
DWDM, ITU Grid, CH. 31, 1552.52 nm, Analog, SC/APC
4022938.31
DWDM, ITU Grid, CH. 32, 1551.72 nm, Analog, SC/APC
4022938.32
DWDM, ITU Grid, CH. 33, 1550.92 nm, Analog, SC/APC
4022938.33
DWDM, ITU Grid, CH. 34, 1550.12 nm, Analog, SC/APC
4022938.34
DWDM, ITU Grid, CH. 35, 1549.32 nm, Analog, SC/APC
4022938.35
DWDM, ITU Grid, CH. 36, 1548.51 nm, Analog, SC/APC
4022938.36
DWDM, ITU Grid, CH. 37, 1547.72 nm, Analog, SC/APC
4022938.37
DWDM, ITU Grid, CH. 38, 1546.92 nm, Analog, SC/APC
4022938.38
DWDM, ITU Grid, CH. 39, 1546.12 nm, Analog, SC/APC
4022938.39
DWDM, ITU Grid, CH. 40, 1545.32 nm, Analog, SC/APC
4022938.40
DWDM, ITU Grid, CH. 41, 1544.53 nm, Analog, SC/APC
4022938.41
DWDM, ITU Grid, CH. 42, 1543.73 nm, Analog, SC/APC
4022938.42
DWDM, ITU Grid, CH. 43, 1542.94 nm, Analog, SC/APC
4022938.43
DWDM, ITU Grid, CH. 44, 1542.14 nm, Analog, SC/APC
4022938.44
DWDM, ITU Grid, CH. 45, 1541.35 nm, Analog, SC/APC
4022938.45
DWDM, ITU Grid, CH. 46, 1540.56 nm, Analog, SC/APC
4022938.46
DWDM, ITU Grid, CH. 47, 1539.77 nm, Analog, SC/APC
4022938.47
DWDM, ITU Grid, CH. 48, 1538.98 nm, Analog, SC/APC
4022938.48
DWDM, ITU Grid, CH. 49, 1538.19 nm, Analog, SC/APC
4022938.49
DWDM, ITU Grid, CH. 50, 1537.40 nm, Analog, SC/APC
4022938.50
DWDM, ITU Grid, CH. 51, 1536.61 nm, Analog, SC/APC
4022938.51
DWDM, ITU Grid, CH. 52, 1535.82 nm, Analog, SC/APC
4022938.52
DWDM, ITU Grid, CH. 53, 1535.04 nm, Analog, SC/APC
4022938.53
DWDM, ITU Grid, CH. 54, 1534.25 nm, Analog, SC/APC
4022938.54
DWDM, ITU Grid, CH. 55, 1533.47 nm, Analog, SC/APC
4022938.55
DWDM, ITU Grid, CH. 56, 1532.68 nm, Analog, SC/APC
4022938.56
DWDM, ITU Grid, CH. 57, 1531.90 nm, Analog, SC/APC
4022938.57
DWDM, ITU Grid, CH. 58, 1531.12 nm, Analog, SC/APC
4022938.58
DWDM, ITU Grid, CH. 59, 1530.33 nm, Analog, SC/APC
