Cisco TelePresence PrecisionHD Camera - 1080p 4xS2
Cisco TelePresence PrecisionHD Camera - 1080p 2.5x

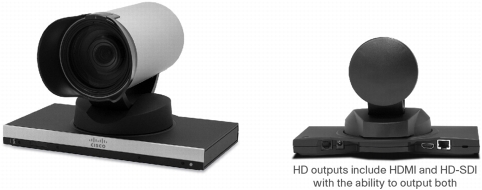

Figure 1. Cisco TelePresence PrecisionHD Camera - 1080p 12x
The Cisco TelePresence® portfolio creates an immersive, face-to-face experience over the network, empowering you to collaborate with others as never before. Through a powerful combination of technologies and design that allows you and remote participants to feel as if you are all in the same room, the Cisco TelePresence portfolio has the potential to provide great productivity benefits and transform your business. Many organizations are already using it to control costs, make decisions faster, improve customer intimacy, scale scarce resources, and reduce time to market.
Product Overview
The Cisco TelePresence PrecisionHD Camera (Figure 1) enables users to fully realize the high-definition experience and provides superior video quality at any bandwidth. Designed specifically for videoconferencing, it provides crystal-clear, true-to-life quality for interaction and collaboration. The PrecisionHD Camera is available in four versions: the Cisco TelePresence PrecisionHD Camera - 720p, Cisco TelePresence PrecisionHD Camera - 1080p 4x, Cisco TelePresence PrecisionHD Camera - 1080p 4xS2 and Cisco TelePresence PrecisionHD Camera - 1080p12x.
Cisco TelePresence PrecisionHD Camera Features
Table 1 summarizes the main features of the Cisco TelePresence PrecisionHD Camera.
Table 1. Cisco TelePresence PrecisionHD Camera Features
Feature
Cisco TelePresence PrecisionHD Camera - 720p
Cisco TelePresence PrecisionHD Camera - 1080p 12x
Cisco TelePresence PrecisionHD Camera - 1080p 4x
Cisco TelePresence PrecisionHD Camera - 1080p 4xS2
PrecisionHD Camera 1080p 2.5x
Features
• High-definition camera designed by Cisco
• Fast and smooth video handling
• Automatic or manual focus, brightness, and white balance
• In-call LED indicator
• Power indicator
• Auto-iris sensor
• Ultimate high-definition camera designed by Cisco
• Full 1080 HD
• Upside-down mounting with automatic flipping of picture
• Dual high-definition multimedia interface (HDMI) and high-definition serial digital interface (HD-SDI) output
• Improved autofocus with multifocus points
• Improved white balance with ambient light sensor
• Automatic or manual focus, brightness, and white balance
• In-call LED indicator and power indicator
• Full 1080 HD
• Mount upside down-(select option through VISCA™)
• Automatic or manual focus, brightness, and white balance
• High-definition multimedia interface (HDMI)
• In-call LED indicator and power indicator
• True High Definition 1080 HD @ 60 fps
• Automatic upside down mount
• Automatic or manual focus, brightness, and white balance
• Combined high-definition multimedia interface (HDMI) with power/control.
• In-call LED display and power indicator
• True High Definition 1080 HD @ 60 fps
• Automatic upside down mount
• Automatic or manual focus, brightness, and white balance
• Combined high-definition multimedia interface (HDMI) with power/control.
• In-call LED display and power indicatorFull 10
Performance
• 1280 x 720 pixels progressive at 30 frames per second (fps)
• 7 x optical zoom
• 1/3-inch complementary metal oxide semiconductor (CMOS), 10 to -20° tilt, and + or -90° pan
• Focus distance of 0.3m to infinity
• 42° vertical field of view
• F 1.7
• Voice-activated camera positioning
• 1920 x 1080 at 60 and 50 fps (HDMI only); 1920 x 1080 at 30 and 25fps; and 1280 x 720 at 60, 50, 30, and 25fps
• 12 x optical zoom
• 1/3-inch CMOS, 15 to -25° tilt, and + or -90° pan
• 43.5° vertical field of view
• 72° horizontal field of view
• Focus distance of 0.3m to infinity
• F 1.7
• Daisy-chain support (Visca protocol camera)
• 1920 x 1080 at 30 fps / 1024 x 720 at 60 fps
• 4x optical zoom
• Pan speed: 100º/s, range: -90º to +90º
• Tilt speed: 30º/s, range: -15º to +15º
• 43.5° vertical field of view
• 70° horizontal field of view
• F 1.7
• Focus distance 0.3m-infinity
• Far-end camera control
• Daisy-chain support (can only be in the end of a chain)
• 1920 x 1080 at 60 fps
• 1/3" CMOS
• 4x optical zoom
• Pan speed: 100º/s, range: -90º to +90º
• Tilt speed: 30º/s, range: -25º to +15º
• 43.5° vertical field of view
• 70° horizontal field of view
• F 1.7
• Focus distance 0.3 m-infinity
• Far-end camera control
• Daisy-chain support (can only be in the end of a chain)
• 1920 x 1080 at 60 fps
• 1/3" CMOS
• 2.5x optical zoom
• Pan speed: 100º/s, range: -30º to +30º
• Tilt speed: 30º/s, range: -25º to +5º
• 52.5° vertical field of view
• 83° horizontal field of view
• F 1.7
• Focus distance 0.3 m-infinity
• Far-end camera control
Specifications
• Width: 8.8 inches (22.2 cm)
• Depth: 5.7 inches (14.5 cm)
• Height: 6.6 inches (16.7 cm) (at maximum tilt)
• Weight: 3.75 lb (1.7 kg)
• Height (at maximum tilt): 6.8 inches (17.2 cm)
• Width: 8.7 inches (22 cm)
• Depth: 5.8 inches (14.7 cm)
• Weight: 3.95 lb (1.8kg)
• Height (at max tilt): 151 mm/5.94 in
• Width: 212 mm/8.35 in
• Depth: 138 mm/5.43 in
• Weight: 1.44 kg/3.17 lbs
• Height (At max tilt): H 150,5 mm/5.92 in
• Width: 212 mm/8.35 in
• Depth: 138,5 mm/5.45 in
• Weight: 1.44 kg/3.17 lbs
Note: Product specifications are estimates and are subject to change without notice.
Camera Overview
Cisco TelePresence PrecisionHD Camera 1080p 2.5x
Cisco TelePresence PrecisionHD Camera 1080p 4xS2
Cisco TelePresence PrecisionHD Camera 1080p 12x
2.5x optical zoom (5x with digital*)
4x optical zoom (8x with digital*)
12x optical zoom
Motorized +5°/-25° tilt, +/- 30° pan
Motorized +15°/-25° tilt, +/- 90° pan
Motorized +15°/-25° tilt, +/- 90° pan
51.5° vertical field of view
43.5° vertical field of view
43.5° vertical field of view
83° horizontal field of view
70° horizontal field of view
72° horizontal field of view
F 2.0
F 1.7
F 1.7
1920 x 1080 pixels progressive @ 60 fps
Automatic or manual focus, brightness, and white balance
Far-end camera control
Dual HDMI/Camera Control and USB output
Dual HDMI/Camera control
HDMI, HD-SDI output, and daisy chain
Upside-down mounting, picture flips automatically
Upside-down mounting, manual picture flip.
Upside-down mounting, picture flips automatically
Focus distance 0.3 m - infinity
*needs future software upgrade
Ordering Information
To place an order, visit the Cisco Ordering homepage. Table 2 provides ordering information.
Table 2. Ordering Information
Product Name
Part Number
Compliance Model Number
Cisco TelePresence PrecisionHD Cameras - 1080p
PrecisionHD Camera - 1080p12x Camera and Kit
CTS-PHD-1080P-KIT=
TTC8-02
Comes with: Cisco PrecisionHD Camera - 1080p12x, audio/video cables, power supply
PrecisionHD Camera 1080p Option Spares - cameras ONLY, cables not included
PrecisionHD 1080p12X Unit - Gray
CTS-PHD-1080P12XG=
TTC8-02
PrecisionHD 1080p12X Unit - Silver
CTS-PHD-1080P12XS=
TTC8-02
PrecisionHD 1080p4x Unit - Silver - use with Cisco Codec C40 based products
CTS-PHD-1080P4XS=
TTC8-04
PrecisionHD 1080p4x Unit - Silver - use with Cisco Codec C20 based products
CTS-PHD1080P4XS1=
TTC8-04
Cable Accessories Kit for PrecisionHD Camera 1080p12x and 4x
ACC-PHD1080P=
Comes with: audio/video and camera cables for Precision 1080p12x and 4x cameras
Audio/Video Cable and Power Supply Options
HDMI to HDMI cable, 5 meters
CAB-2HDMI-5M=
Adaptor HDMI to DVID cable
ADPT-HDMI-DVID=
MXP Power Supply WAVE II/PHD cameras
PSU-CAM-V=
Cisco TelePresence Precision HD Cameras - 720p
Precision HD Camera Option Kit 720p
PHD-KIT=
TTC8-01
Comes with: Silver PrecisionHD Camera 720p audio/video and camera cables, power supply and rack mounts
PrecisionHD Camera, 720p
CTS-PHD=
TTC8-01
Comes with: Silver PrecisionHD Camera 720p, camera cables
Audio/Video Cable and Power Supply Options
HDMI to HDMI cable, 5 meters
CAB-2HDMI-5M=
Adaptor HDMI to DVID cable
ADPT-HDMI-DVID=
MXP Power Supply WAVE II/PHD cameras
PSU-CAM-V=
