Medianet Campus Cisco Catalyst 6500 Supervisor 2T
QoS Design
Role in Medianet Campus Network
The Cisco Catalyst 6500 series switches with Supervisor 2Ts are well-suited to the role of distribution- or core-layer switches in medianet campus networks. As such, these switches typically connect directly to other switches or routers, as shown in Figure 1.
Figure 1 Cisco Catalyst 6500 Supervisor 2T Switches in a Medianet Campus Network
QoS Design Steps
There are two main steps to configure QoS on Cisco Catalyst 6500 series switches with Supervisor 2T:
1.
Configure Ingress Queuing
2.
Step 1: Configure Ingress Queuing
The medianet 8Q4T ingress queuing model for the Cisco Catalyst 6500 with Supervisor 2T is shown in Figure 2.

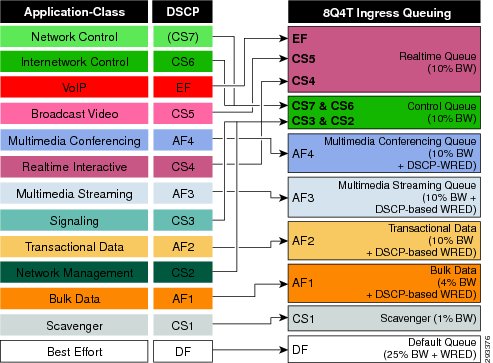

Figure 2 Catalyst 6500 Sup2T (8Q4T) Ingress Queuing Model
Step 2: Configure Egress Queuing
The medianet 1P7Q4T egress queuing model for the Cisco Catalyst 6500 with Supervisor 2T is shown in Figure 3.
Figure 3 Catalyst 6500 Sup2T (1P7Q4T) Egress Queuing Model
EtherChannel QoS
Ingress QoS policies on the Cisco Catalyst 6500 are configured on the logical Port-Channel interface (typically these are simply to enable DSCP trust, which is enabled by default on the Sup2T) , while egress QoS policies are configured on the physical port-member interfaces.
Cisco Validated Design (CVD)

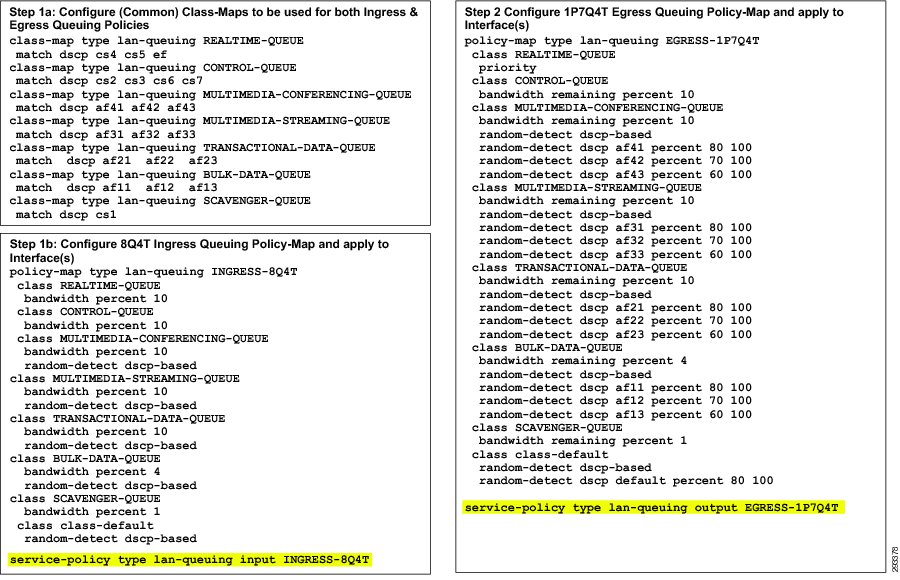

The Cisco Validated Design for Cisco Catalyst 6500 series switches with Supervisor 2T in the role of a distribution- or core-layer switch in a medianet campus network is presented on the reverse.
Note: Highlighted commands are interface specific; otherwise these are global.For more details, see Medianet Campus QoS Design 4.0: :http://www.cisco.com/en/US/docs/solutions/Enterprise/WAN_and_MAN/QoS_SRND_40/QoSCampus_40.html.
